Angular contact ball bearing QJ224 – 120×215×40 mm
4 offers · 2 manufacturers · net prices from PLN 1,741.07 · dispatch in 2 working days
QJ224 is a angular contact ball bearing with a 120 mm bore, 215 mm outside diameter and 40 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 120 mm
- outside D
- 215 mm
- width B
- 40 mm
- sealing
- open
- mass
- 6.82 kg
- net price from
- PLN 1,741.07
Brands and prices QJ224
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
No standard items with this clearance – see the special designs below.
▸Special designs QJ224 (4) – stainless steel, snap ring, manufacturer specials

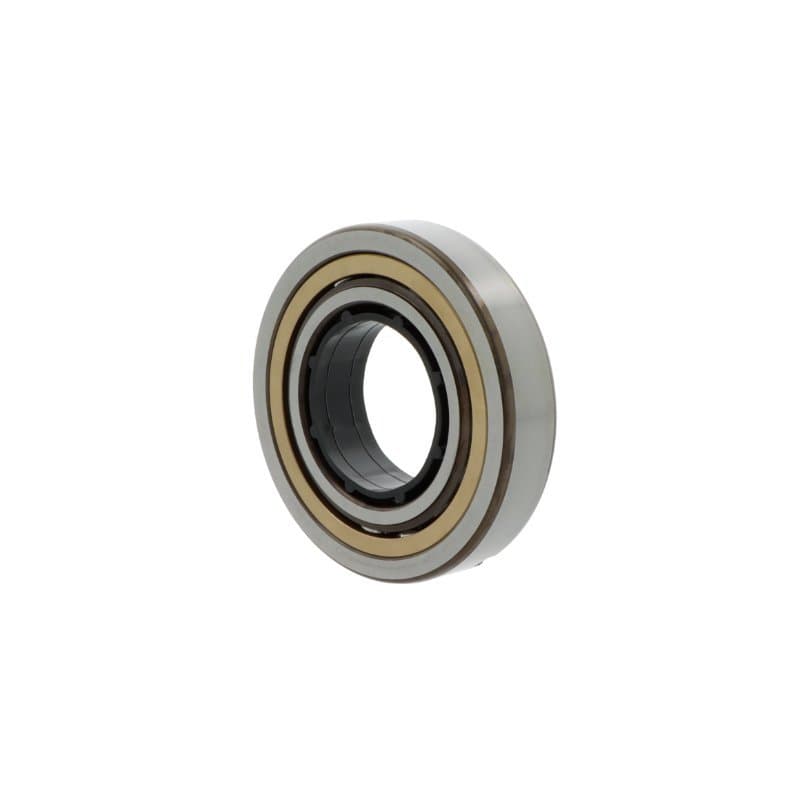

| FAG | QJ224 N2MPAsnap ring groove | CN | PLN 1,741.07PLN 2,141.52 gross | supplier stockdispatch in 2 working days | |
| FAG | QJ224 N2MPAC3snap ring groove | C3 | PLN 1,741.07PLN 2,141.52 gross | supplier stockdispatch in 2 working days | |
| SKF | QJ224 N2MAsnap ring groove | CN | PLN 2,094.77PLN 2,576.57 gross | supplier stockdispatch in 2 working days | |
| SKF | QJ224 N2MAC3snap ring groove | C3 | PLN 2,214.48PLN 2,723.81 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
How manufacturers designate QJ224
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | QJ224 N2MPA | Open |
| SKF | QJ224 N2MA | Open |
Questions about QJ224
What are the dimensions of bearing QJ224?
Bore 120 mm, outside diameter 215 mm, width 40 mm. Standardised dimensions – the same for every manufacturer.
How much does bearing QJ224 cost?
At Castomer from PLN 1,741.07 to PLN 2,214.48 net per piece depending on the manufacturer (FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for QJ224?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
