Angular contact ball bearing QJ308 – 40×90×23 mm

4 offers · 2 manufacturers · net prices from PLN 160.71 · dispatch in 2 working days

QJ308 is a angular contact ball bearing with a 40 mm bore, 90 mm outside diameter and 23 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 40 mm
outside D: 90 mm
width B: 23 mm
sealing: open
mass: 0.65 kg
net price from: PLN 160.71

Dimension drawing QJ308 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	40 mm
D – outside diameter	90 mm
B – width	23 mm
mass	0.65 kg

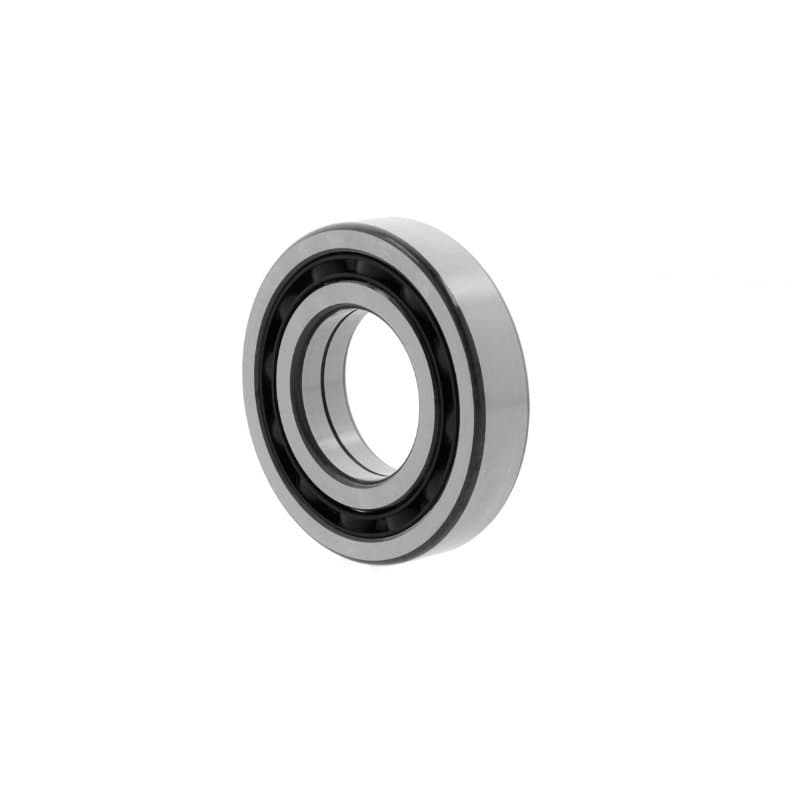

Pictured: FAG QJ308 TVP. Every brand has its own product page with photo and full description.

Brands and prices QJ308

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
FAG	QJ308 TVPpolyamide window cage (FAG)	CN	PLN 160.71PLN 197.67 gross	supplier stockdispatch in 2 working days
FAG	QJ308 MPAmachined brass cage	CN	PLN 235.66PLN 289.86 gross	supplier stockdispatch in 2 working days
SKF	QJ308 MAmachined brass cage, outer ring centred	CN	PLN 326.00PLN 400.98 gross	supplier stockdispatch in 2 working days

▸Special designs QJ308 (1) – stainless steel, snap ring, manufacturer specials

SKF

QJ308 N2MA/C2Lsnap ring groove

PLN 411.70PLN 506.39 gross

supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate QJ308

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	QJ308 TVP	Open
SKF	QJ308 MA	Open

Questions about QJ308

What are the dimensions of bearing QJ308?

Bore 40 mm, outside diameter 90 mm, width 23 mm. Standardised dimensions – the same for every manufacturer.

Are QJ308 bearings from different brands interchangeable?

Yes. QJ308 TVP FAG, QJ308 MA SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing QJ308 cost?

At Castomer from PLN 160.71 to PLN 326.00 net per piece depending on the manufacturer (FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for QJ308?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
