Needle roller bearing RNA4900 – 14×22×13 mm

5 offers · 3 manufacturers · net prices from PLN 17.22 · dispatch in 2 working days

RNA4900 is a needle roller bearing with a 14 mm bore, 22 mm outside diameter and 13 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 14 mm
outside D: 22 mm
width B: 13 mm
sealing: open
mass: 0.01 kg
net price from: PLN 17.22

Dimension drawing RNA4900 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	14 mm
D – outside diameter	22 mm
B – width	13 mm
mass	0.01 kg

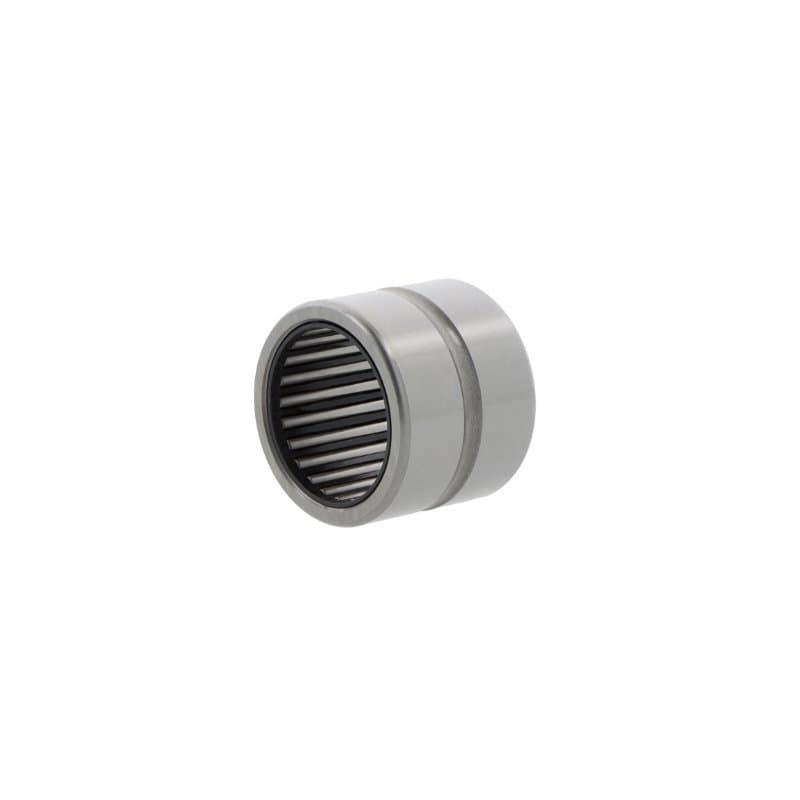

Pictured: NKE RNA4900. Every brand has its own product page with photo and full description.

Brands and prices RNA4900

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	RNA4900	CN	PLN 17.22PLN 21.18 gross	supplier stockdispatch in 2 working days
NTN	RNA4900 R	CN	PLN 23.87PLN 29.36 gross	supplier stockdispatch in 2 working days
NTN	RNA4900 L/3AS	CN	PLN 31.80PLN 39.11 gross	supplier stockdispatch in 2 working days
NTN	RNA4900 LL/3AS	CN	PLN 37.10PLN 45.63 gross	supplier stockdispatch in 2 working days
INA	RNA4900	CN	PLN 37.58PLN 46.22 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of RNA4900

The same size in another design – open, shielded, tapered bore.

How manufacturers designate RNA4900

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
NTN	RNA4900 R	Open
NKE	RNA4900	Open
INA	RNA4900	Open

Questions about RNA4900

What are the dimensions of bearing RNA4900?

Bore 14 mm, outside diameter 22 mm, width 13 mm. Standardised dimensions – the same for every manufacturer.

Are RNA4900 bearings from different brands interchangeable?

Yes. RNA4900 R NTN, RNA4900 NKE, RNA4900 INA are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing RNA4900 cost?

At Castomer from PLN 17.22 to PLN 37.58 net per piece depending on the manufacturer (NTN, NKE, INA). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for RNA4900?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
