Needle roller bearing RNA4917 – 100×120×35 mm

4 offers · 4 manufacturers · net prices from PLN 160.43 · dispatch in 2 working days

RNA4917 is a needle roller bearing with a 100 mm bore, 120 mm outside diameter and 35 mm width, open design (no seals) – for externally lubricated arrangements. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 100 mm
outside D: 120 mm
width B: 35 mm
sealing: open
mass: 0.72 kg
net price from: PLN 160.43

Dimension drawing RNA4917 – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	100 mm
D – outside diameter	120 mm
B – width	35 mm
mass	0.72 kg

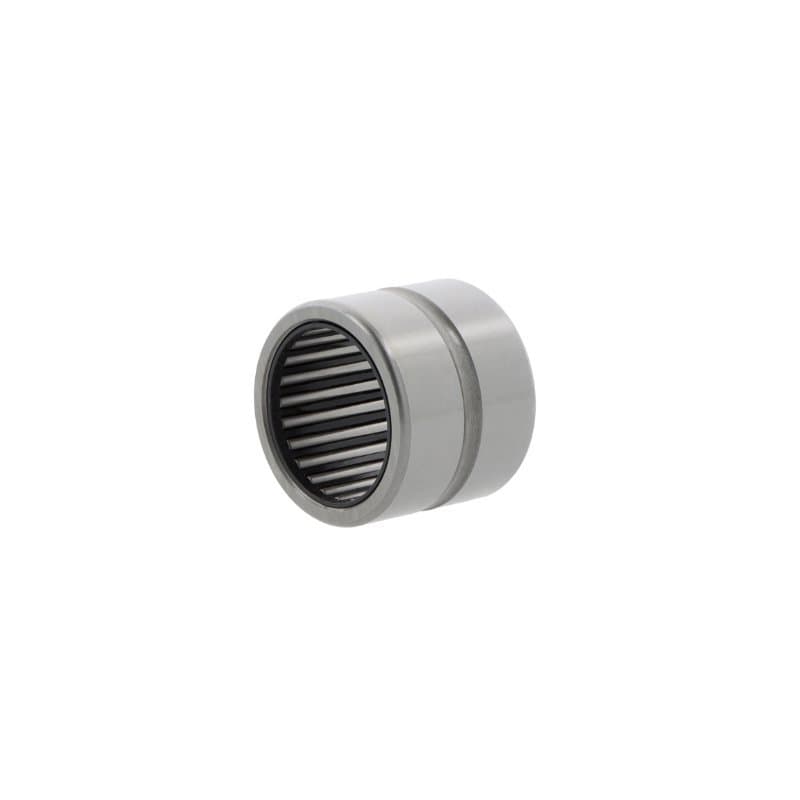

Pictured: NKE RNA4917. Every brand has its own product page with photo and full description.

Brands and prices RNA4917

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NKE	RNA4917	CN	PLN 160.43PLN 197.33 gross	supplier stockdispatch in 2 working days
NTN	RNA4917 R	CN	PLN 214.93PLN 264.36 gross	supplier stockdispatch in 2 working days
INA	RNA4917	CN	PLN 309.26PLN 380.39 gross	supplier stockdispatch in 2 working days
SKF	RNA4917	CN	PLN 402.84PLN 495.49 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

How manufacturers designate RNA4917

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
NKE	RNA4917	Open
NTN	RNA4917 R	Open
INA	RNA4917	Open
SKF	RNA4917	Open

Questions about RNA4917

What are the dimensions of bearing RNA4917?

Bore 100 mm, outside diameter 120 mm, width 35 mm. Standardised dimensions – the same for every manufacturer.

Are RNA4917 bearings from different brands interchangeable?

Yes. RNA4917 NKE, RNA4917 R NTN, RNA4917 INA, RNA4917 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing RNA4917 cost?

At Castomer from PLN 160.43 to PLN 402.84 net per piece depending on the manufacturer (NKE, NTN, INA, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for RNA4917?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
