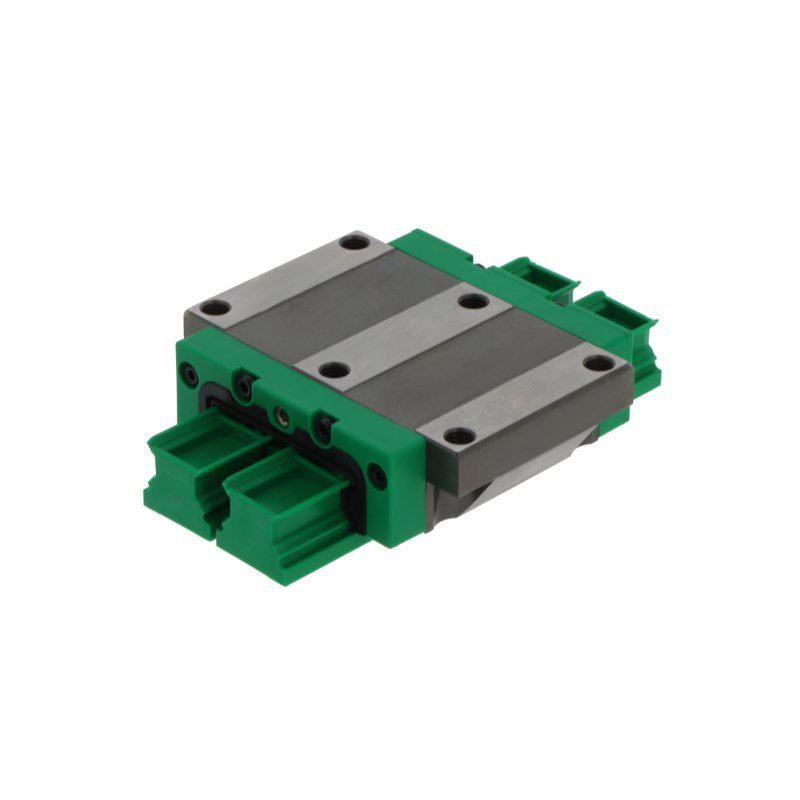

Linear carriage
KWVE15 WG3V2INA
- Basic dynamic load rating C
- 7.2 kN
- Basic static load rating C0
- 14.5 kN
- Mass
- 0.27 kg
Available in 1–2 days
Net price per pcPLN 280.58PLN 345.11 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 68 mm
- H
- overall height (carriage on rail)
- 21 mm
- L
- overall carriage length
- 55.6 mm
- L1
- body length (without end seals)
- 39.8 mm
- JB
- mounting hole spacing — across
- 60 mm
- JL
- corner hole spacing — along
- 29 mm
- A1
- rail flank to carriage side
- 15.5 mm
- b
- rail width
- 37 mm
- h
- rail height
- 12.9 mm
- jL
- rail hole pitch
- 50 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M5 × 7 mm |
|---|---|
| matching rail | TKVD15-W · screws M4 (5 Nm) |
Nośność i prędkość
| Basic dynamic load rating C | 7.2 kN |
|---|---|
| Basic static load rating C0 | 14.5 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 332 / 100 / 100 Nm |
| Mass | 0.27 kg |
Rail configuration
Rail
TKVD15-W
Dimensions of rail TKVD15-W
- h
- rail height
- 12.9 mm
- b
- rail width
- 37 mm
- jL
- rail hole pitch
- 50 mm
Set the length and hole layout
Rail TKVD15-W cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR25mm
- Number of holes
- 20
- Rail mass
- 3.6 kg
- Ordering designation
- TKVD15-W/1000-25/25
Max. 2,890 mm in one piece — longer runs are made of sections.
Browse TKVD15-W rails in the catalogueEquivalents
KWVE15 WG3V2 bearings with the same dimensions from other manufacturers. Compare price and lead time.
