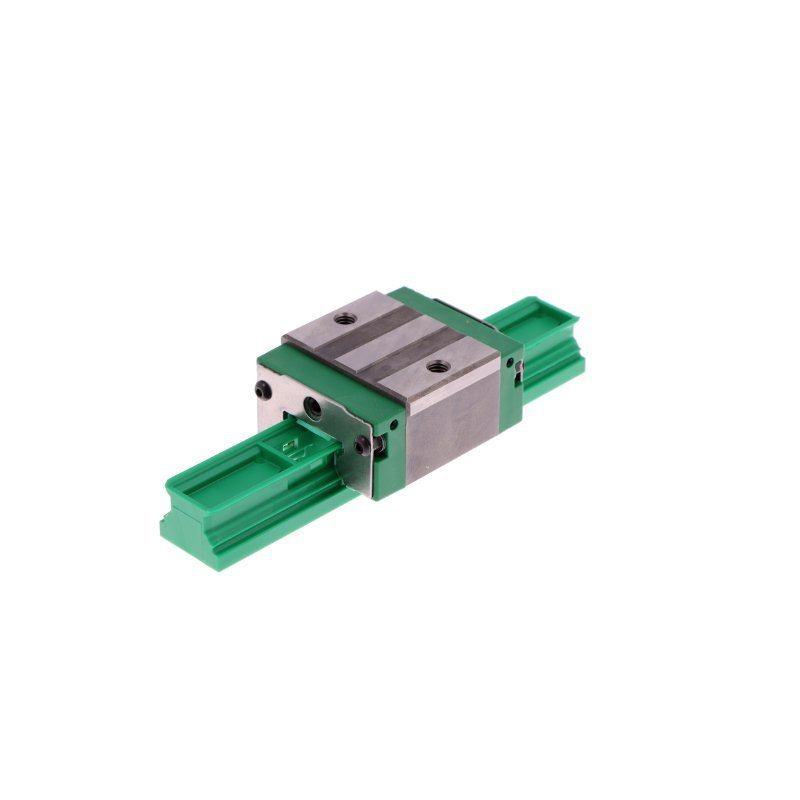

Linear carriage
KWVE30 BESCG3V1INA
- Basic dynamic load rating C
- 18.7 kN
- Basic static load rating C0
- 31.5 kN
- Mass
- 0.57 kg
Available in 1–2 days
Net price per pcPLN 299.16PLN 367.97 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 60 mm
- H
- overall height (carriage on rail)
- 42 mm
- L
- overall carriage length
- 69 mm
- L1
- body length (without end seals)
- 42 mm
- JB
- mounting hole spacing — across
- 40 mm
- A1
- rail flank to carriage side
- 16 mm
- b
- rail width
- 28 mm
- h
- rail height
- 23.5 mm
- jL
- rail hole pitch
- 80 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M8 × 13.5 mm |
|---|---|
| matching rail | TKVD30 · screws M8 (41 Nm) |
Nośność i prędkość
| Basic dynamic load rating C | 18.7 kN |
|---|---|
| Basic static load rating C0 | 31.5 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 554 / 248 / 248 Nm |
| Mass | 0.57 kg |
Rail configuration
Rail
TKVD30
Dimensions of rail TKVD30
- h
- rail height
- 23.5 mm
- b
- rail width
- 28 mm
- jL
- rail hole pitch
- 80 mm
Set the length and hole layout
Rail TKVD30 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR60mm
- Number of holes
- 12
- Rail mass
- 4.3 kg
- Ordering designation
- TKVD30/1000-60/60
Max. 5,860 mm in one piece — longer runs are made of sections.
Browse TKVD30 rails in the catalogueEquivalents
KWVE30 BESCG3V1 bearings with the same dimensions from other manufacturers. Compare price and lead time.
