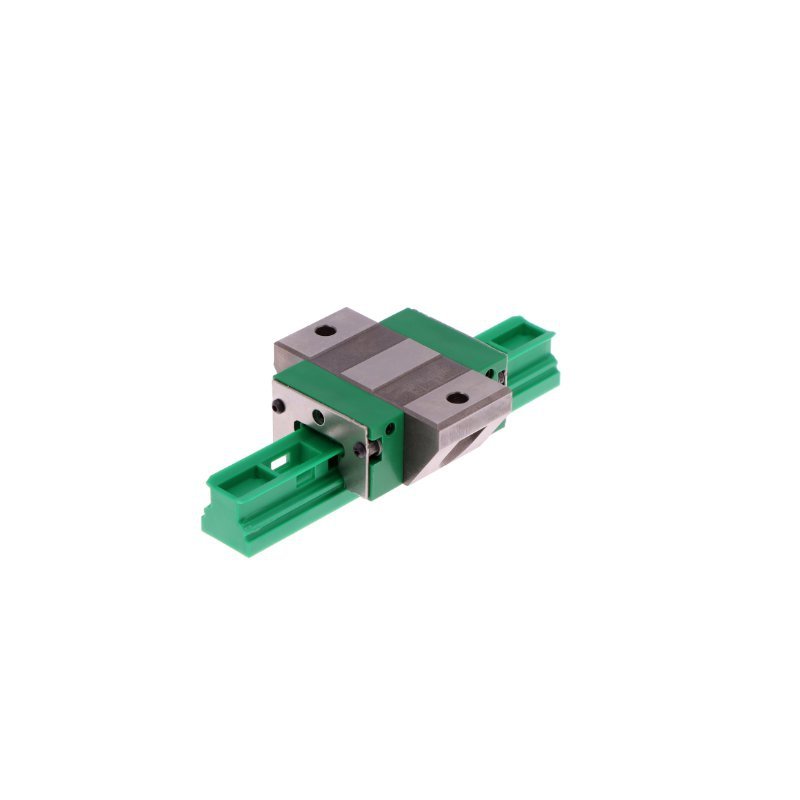

Linear carriage KWVE45 BECG3V1 INA – product photo — Illustrative photo

Linear carriage

KWVE45 BECG3V1INA

Basic dynamic load rating C: 46.5 kN
Basic static load rating C0: 80 kN
Mass: 2.07 kg

Replacements Technical drawing

Available in 1–2 days

Net price per pcPLN 395.50PLN 486.47 gross (incl. VAT)

Quantity

pcs

Dimensions

B: carriage width; 120 mm
H: overall height (carriage on rail); 60 mm
L: overall carriage length; 97.8 mm
L₁: body length (without end seals); 59.7 mm
J_B: mounting hole spacing — across; 100 mm
A₁: rail flank to carriage side; 37.5 mm
b: rail width; 45 mm
h: rail height; 34.2 mm
j_L: rail hole pitch; 105 mm

Konstrukcja

matching rail	TKVD45 · screws M12 (140 Nm)

Nośność i prędkość

Basic dynamic load rating C	46.5 kN
Basic static load rating C0	80 kN
static moments M₀ₓ / M₀ᵧ / M₀z	2,060 / 883 / 883 Nm
Mass	2.07 kg

Rail configuration

Rail

TKVD45

Dimensions of rail TKVD45

h: rail height; 34.2 mm
b: rail width; 45 mm
j_L: rail hole pitch; 105 mm

Set the length and hole layout

Rail TKVD45 cut to length. Enter the overall length and the hole layout — we work out the rest.

Overall length LmmRail cut symmetrically (aL = aR)Left end to first hole axis aLmm

Right end to last hole axis aR80mm

Number of holes: 9
Rail mass: 9.2 kg
Ordering designation: TKVD45/1000-80/80

Number of rails

Max. 5,835 mm in one piece — longer runs are made of sections.

Browse TKVD45 rails in the catalogue

Equivalents

KWVE45 BECG3V1 bearings with the same dimensions from other manufacturers. Compare price and lead time.
