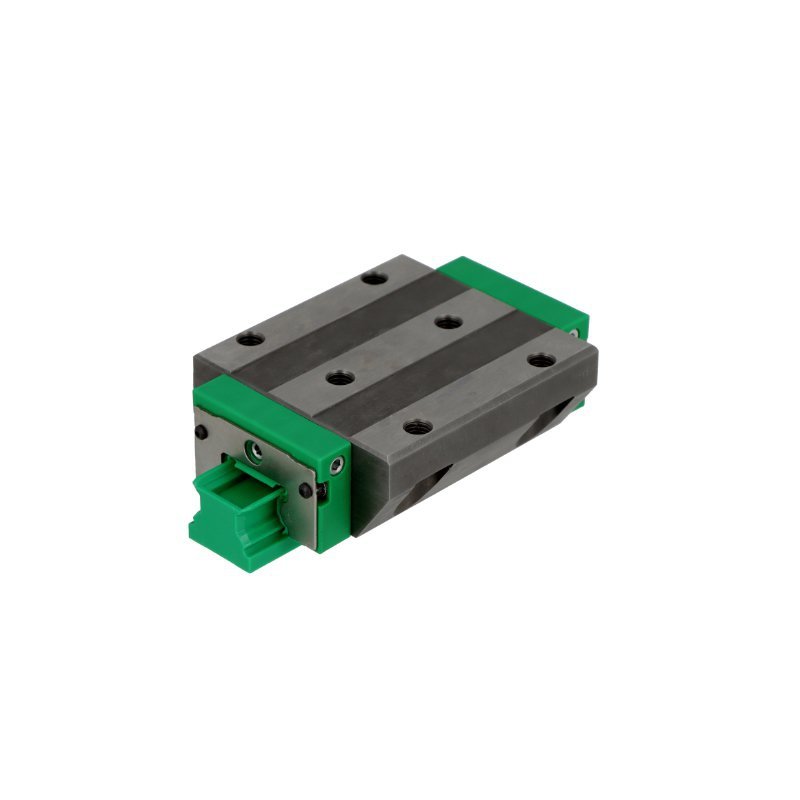

Linear carriage
KWVE55 BLG3V1INA
- Basic dynamic load rating C
- 127 kN
- Basic static load rating C0
- 285 kN
- Mass
- 6.6 kg
Available in 1–2 days
Net price per pcPLN 1,318.58PLN 1,621.85 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 140 mm
- H
- overall height (carriage on rail)
- 70 mm
- L
- overall carriage length
- 211.6 mm
- L1
- body length (without end seals)
- 170 mm
- JB
- mounting hole spacing — across
- 116 mm
- JL
- corner hole spacing — along
- 95 mm
- A1
- rail flank to carriage side
- 43.5 mm
- b
- rail width
- 53 mm
- h
- rail height
- 41.5 mm
- jL
- rail hole pitch
- 120 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M14 × 21 mm |
|---|---|
| matching rail | TKVD55-B · screws M14 (220 Nm) |
Nośność i prędkość
| Basic dynamic load rating C | 127 kN |
|---|---|
| Basic static load rating C0 | 285 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 7,500 / 4,725 / 4,800 Nm |
| Mass | 6.6 kg |
Rail configuration
Rail
TKVD55-B
Dimensions of rail TKVD55-B
- h
- rail height
- 41.5 mm
- b
- rail width
- 53 mm
- jL
- rail hole pitch
- 120 mm
Set the length and hole layout
Rail TKVD55-B cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR80mm
- Number of holes
- 8
- Rail mass
- 14 kg
- Ordering designation
- TKVD55-B/1000-80/80
Max. 5,820 mm in one piece — longer runs are made of sections.
