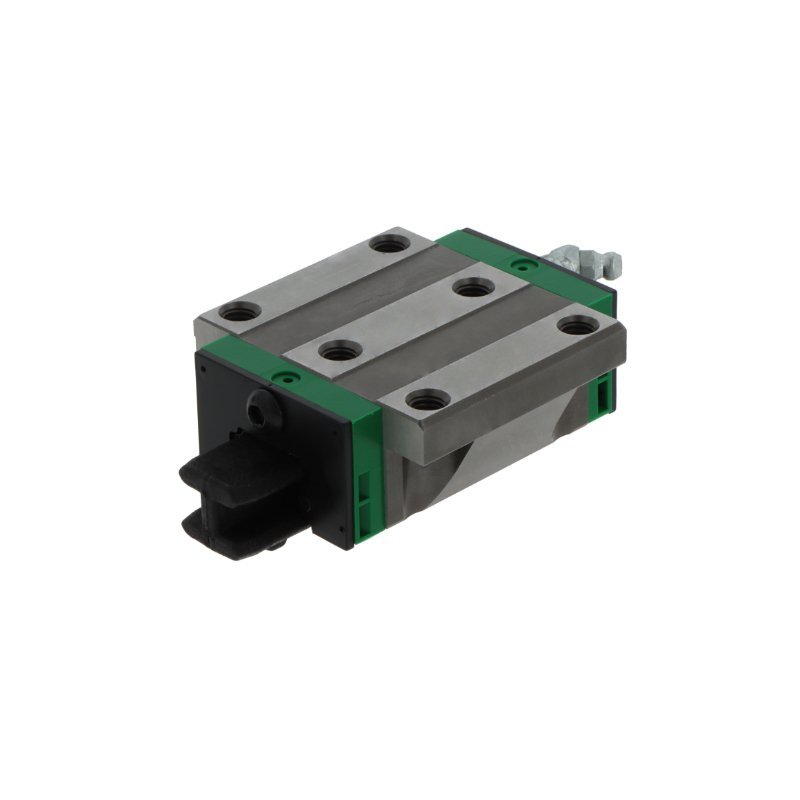

Linear carriage
KWSE25 -V0-G3INA
- Basic dynamic load rating C
- 38 kN
- Basic static load rating C0
- 81 kN
- Mass
- 0.6 kg
Available in 1–2 days
Net price per pcPLN 624.07PLN 767.61 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 70 mm
- H
- overall height (carriage on rail)
- 36 mm
- L
- overall carriage length
- 81.8 mm
- L1
- body length (without end seals)
- 60.9 mm
- JB
- mounting hole spacing — across
- 57 mm
- JL
- corner hole spacing — along
- 45 mm
- A1
- rail flank to carriage side
- 23.5 mm
- b
- rail width
- 23 mm
- h
- rail height
- 21.7 mm
- jL
- rail hole pitch
- 60 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M8 × 10 mm |
|---|---|
| matching rail | TKSD25 · screws M6 (17 Nm) |
Nośność i prędkość
| Basic dynamic load rating C | 38 kN |
|---|---|
| Basic static load rating C0 | 81 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 840 / 510 / 450 Nm |
| Mass | 0.6 kg |
Rail configuration
Rail
TKSD25
Dimensions of rail TKSD25
- h
- rail height
- 21.7 mm
- b
- rail width
- 23 mm
- jL
- rail hole pitch
- 60 mm
Set the length and hole layout
Rail TKSD25 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR50mm
- Number of holes
- 16
- Rail mass
- 3.1 kg
- Ordering designation
- TKSD25/1000-50/50
Max. 5,880 mm in one piece — longer runs are made of sections.
