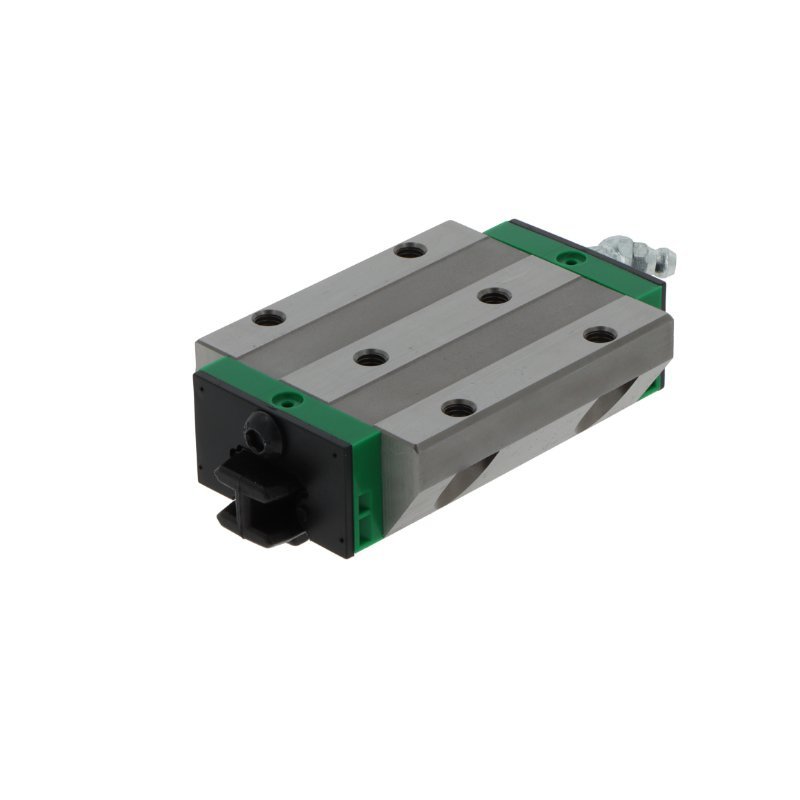

Linear carriage
KWSE30 -L-V2-G2INA
- Basic dynamic load rating C
- 68 kN
- Basic static load rating C0
- 152 kN
- Mass
- 1.6 kg
Available in 1–2 days
Net price per pcPLN 645.02PLN 793.37 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 90 mm
- H
- overall height (carriage on rail)
- 42 mm
- L
- overall carriage length
- 119.3 mm
- L1
- body length (without end seals)
- 95.3 mm
- JB
- mounting hole spacing — across
- 72 mm
- JL
- corner hole spacing — along
- 52 mm
- A1
- rail flank to carriage side
- 31 mm
- b
- rail width
- 28 mm
- h
- rail height
- 25 mm
- jL
- rail hole pitch
- 80 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M10 × 12 mm |
|---|---|
| matching rail | TKSD30 · screws M8 (41 Nm) |
Nośność i prędkość
| Basic dynamic load rating C | 68 kN |
|---|---|
| Basic static load rating C0 | 152 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 1,920 / 1,540 / 1,360 Nm |
| Mass | 1.6 kg |
Rail configuration
Rail
TKSD30
Dimensions of rail TKSD30
- h
- rail height
- 25 mm
- b
- rail width
- 28 mm
- jL
- rail hole pitch
- 80 mm
Set the length and hole layout
Rail TKSD30 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR60mm
- Number of holes
- 12
- Rail mass
- 4.4 kg
- Ordering designation
- TKSD30/1000-60/60
Max. 5,860 mm in one piece — longer runs are made of sections.
