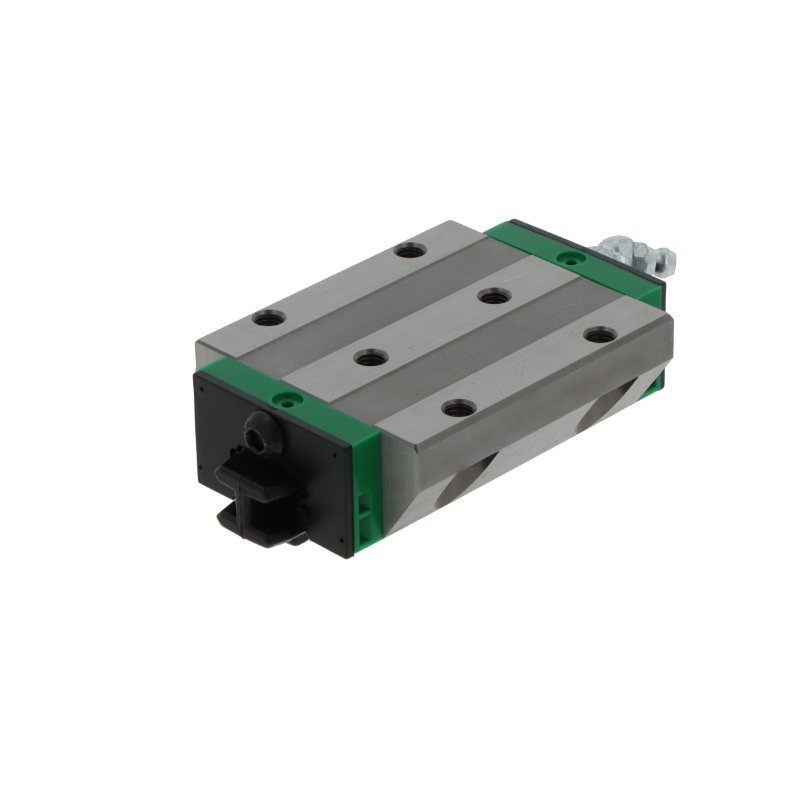

Linear carriage
KWSE35 -L-V0-G3INA
- Basic dynamic load rating C
- 96 kN
- Basic static load rating C0
- 214 kN
- Mass
- 2.1 kg
Available in 1–2 days
Net price per pcPLN 609.18PLN 749.29 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 100 mm
- H
- overall height (carriage on rail)
- 48 mm
- L
- overall carriage length
- 138.9 mm
- L1
- body length (without end seals)
- 109.9 mm
- JB
- mounting hole spacing — across
- 82 mm
- JL
- corner hole spacing — along
- 62 mm
- A1
- rail flank to carriage side
- 33 mm
- b
- rail width
- 34 mm
- h
- rail height
- 29.7 mm
- jL
- rail hole pitch
- 80 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M10 × 13 mm |
|---|---|
| matching rail | TKSD35 · screws M8 (41 Nm) |
Nośność i prędkość
| Basic dynamic load rating C | 96 kN |
|---|---|
| Basic static load rating C0 | 214 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 3,300 / 2,480 / 2,190 Nm |
| Mass | 2.1 kg |
Rail configuration
Rail
TKSD35
Dimensions of rail TKSD35
- h
- rail height
- 29.7 mm
- b
- rail width
- 34 mm
- jL
- rail hole pitch
- 80 mm
Set the length and hole layout
Rail TKSD35 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR60mm
- Number of holes
- 12
- Rail mass
- 6.5 kg
- Ordering designation
- TKSD35/1000-60/60
Max. 5,860 mm in one piece — longer runs are made of sections.
Browse TKSD35 rails in the catalogueEquivalents
KWSE35 -L-V0-G3 bearings with the same dimensions from other manufacturers. Compare price and lead time.
