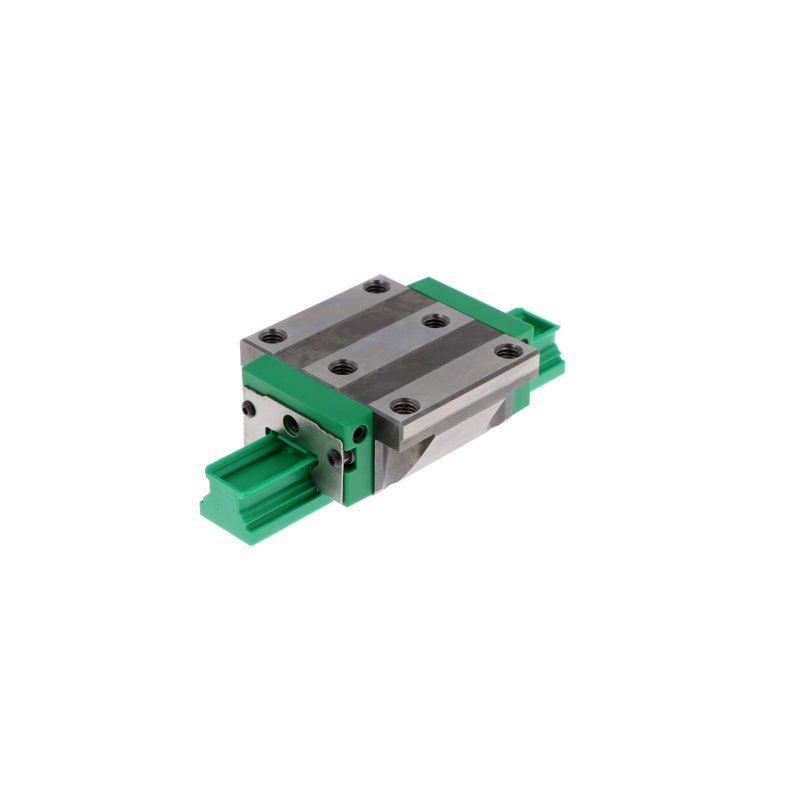

Linear carriage
KWVE20 -B-V2-G2INA
- Basic dynamic load rating C
- 13.1 kN
- Basic static load rating C0
- 27 kN
- Mass
- 0.44 kg
Available in 1–2 days
Net price per pcPLN 306.93PLN 377.52 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 63 mm
- H
- overall height (carriage on rail)
- 30 mm
- L
- overall carriage length
- 71.4 mm
- L1
- body length (without end seals)
- 50.4 mm
- JB
- mounting hole spacing — across
- 53 mm
- JL
- corner hole spacing — along
- 40 mm
- A1
- rail flank to carriage side
- 21.5 mm
- b
- rail width
- 20 mm
- h
- rail height
- 17 mm
- jL
- rail hole pitch
- 60 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M6 × 10 mm |
|---|---|
| matching rail | TKVD20 · screws M5 (10 Nm) |
Nośność i prędkość
| Basic dynamic load rating C | 13.1 kN |
|---|---|
| Basic static load rating C0 | 27 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 332 / 240 / 240 Nm |
| Mass | 0.44 kg |
Rail configuration
Rail
TKVD20
Dimensions of rail TKVD20
- h
- rail height
- 17 mm
- b
- rail width
- 20 mm
- jL
- rail hole pitch
- 60 mm
Set the length and hole layout
Rail TKVD20 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR50mm
- Number of holes
- 16
- Rail mass
- 2.2 kg
- Ordering designation
- TKVD20/1000-50/50
Max. 5,880 mm in one piece — longer runs are made of sections.
