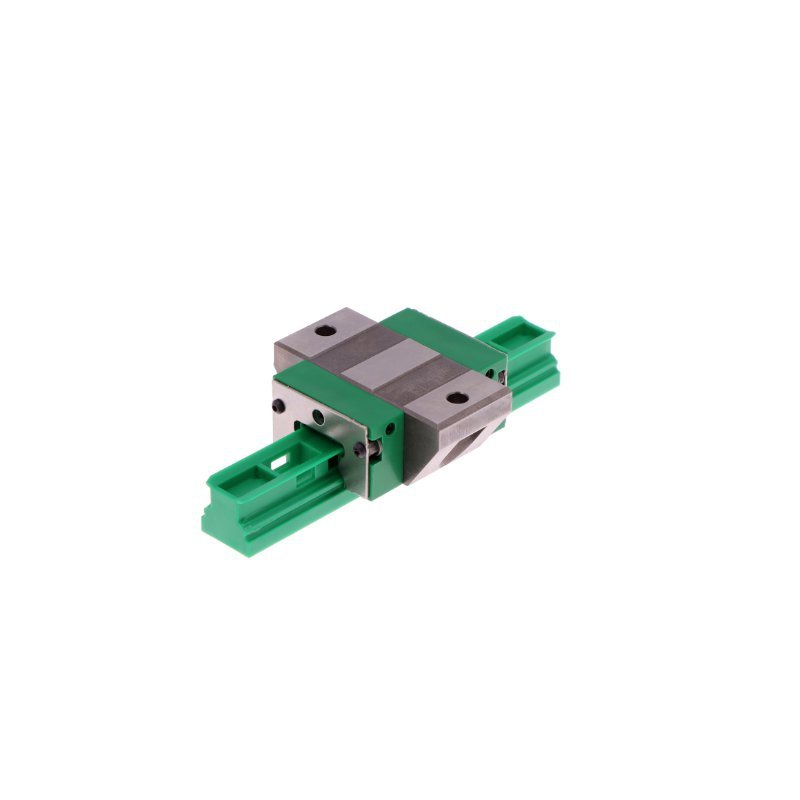

Linear carriage
KWVE25 -B-EC-V0-G3INA
- Basic dynamic load rating C
- 12.5 kN
- Basic static load rating C0
- 22.2 kN
- Mass
- 0.4 kg
Available in 1–2 days
Net price per pcPLN 245.05PLN 301.41 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 73 mm
- H
- overall height (carriage on rail)
- 33 mm
- L
- overall carriage length
- 58.2 mm
- L1
- body length (without end seals)
- 35.6 mm
- JB
- mounting hole spacing — across
- 60 mm
- A1
- rail flank to carriage side
- 25 mm
- b
- rail width
- 23 mm
- h
- rail height
- 18.7 mm
- jL
- rail hole pitch
- 60 mm
Konstrukcja
| matching rail | TKVD25 · screws M6 (17 Nm) |
|---|
Nośność i prędkość
| Basic dynamic load rating C | 12.5 kN |
|---|---|
| Basic static load rating C0 | 22.2 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 305 / 155 / 155 Nm |
| Mass | 0.4 kg |
Rail configuration
Rail
TKVD25
Dimensions of rail TKVD25
- h
- rail height
- 18.7 mm
- b
- rail width
- 23 mm
- jL
- rail hole pitch
- 60 mm
Set the length and hole layout
Rail TKVD25 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR50mm
- Number of holes
- 16
- Rail mass
- 2.7 kg
- Ordering designation
- TKVD25/1000-50/50
Max. 5,880 mm in one piece — longer runs are made of sections.
Browse TKVD25 rails in the catalogueEquivalents
KWVE25 -B-EC-V0-G3 bearings with the same dimensions from other manufacturers. Compare price and lead time.
