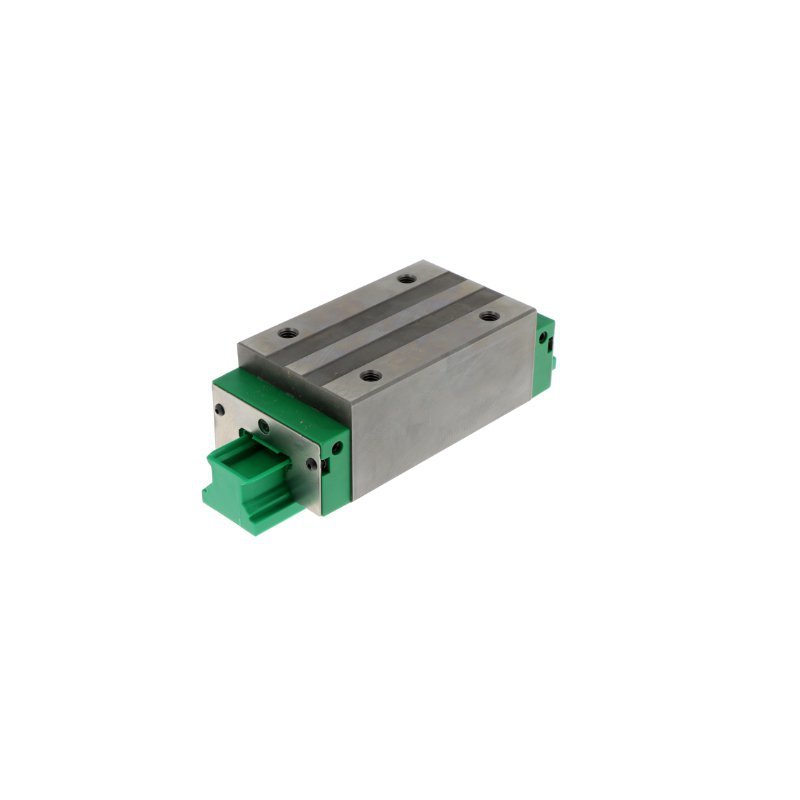

Linear carriage
KWVE35 -B-HL-V2-G3INA
- Basic dynamic load rating C
- 47.5 kN
- Basic static load rating C0
- 100 kN
- Mass
- 2.4 kg
Available in 1–2 days
Net price per pcPLN 468.88PLN 576.72 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 70 mm
- H
- overall height (carriage on rail)
- 55 mm
- L
- overall carriage length
- 145 mm
- L1
- body length (without end seals)
- 113 mm
- JB
- mounting hole spacing — across
- 50 mm
- JL
- corner hole spacing — along
- 72 mm
- A1
- rail flank to carriage side
- 18 mm
- b
- rail width
- 34 mm
- h
- rail height
- 27 mm
- jL
- rail hole pitch
- 80 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M8 × 13.5 mm |
|---|---|
| matching rail | TKVD35 · screws M8 (41 Nm) |
Nośność i prędkość
| Basic dynamic load rating C | 47.5 kN |
|---|---|
| Basic static load rating C0 | 100 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 2,625 / 1,890 / 1,890 Nm |
| Mass | 2.4 kg |
Rail configuration
Rail
TKVD35
Dimensions of rail TKVD35
- h
- rail height
- 27 mm
- b
- rail width
- 34 mm
- jL
- rail hole pitch
- 80 mm
Set the length and hole layout
Rail TKVD35 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR60mm
- Number of holes
- 12
- Rail mass
- 5.7 kg
- Ordering designation
- TKVD35/1000-60/60
Max. 5,860 mm in one piece — longer runs are made of sections.
