Available in 1–2 days
Net price per pcPLN 2,973.24PLN 3,657.09 gross (incl. VAT)
Quantitypcs
Konstrukcja
| rail mounting screws | M16 (340 Nm) |
|---|---|
| rail mass | 19.5 kg/m |
| max. length in one piece | 5,865 mm |
Dimensions of rail TSX65-E
- h
- rail height
- 53.8 mm
- b
- rail width
- 63 mm
- jL
- rail hole pitch
- 75 mm
Set the length and hole layout

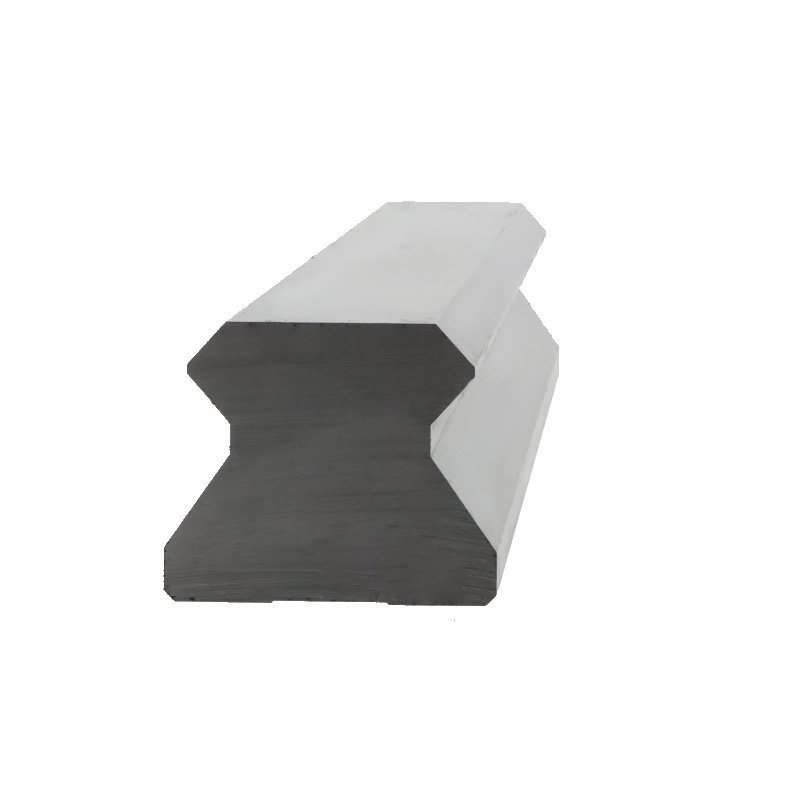

Rail TSX65 EG2HJ cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR50mm
- Number of holes
- 13
- Rail mass
- 19.5 kg
- Ordering designation
- TSX65 EG2HJ/1000-50/50
Max. 5,865 mm in one piece — longer runs are made of sections.
Equivalents
TSX65 EG2HJ bearings with the same dimensions from other manufacturers. Compare price and lead time.
