5VX900 INNE

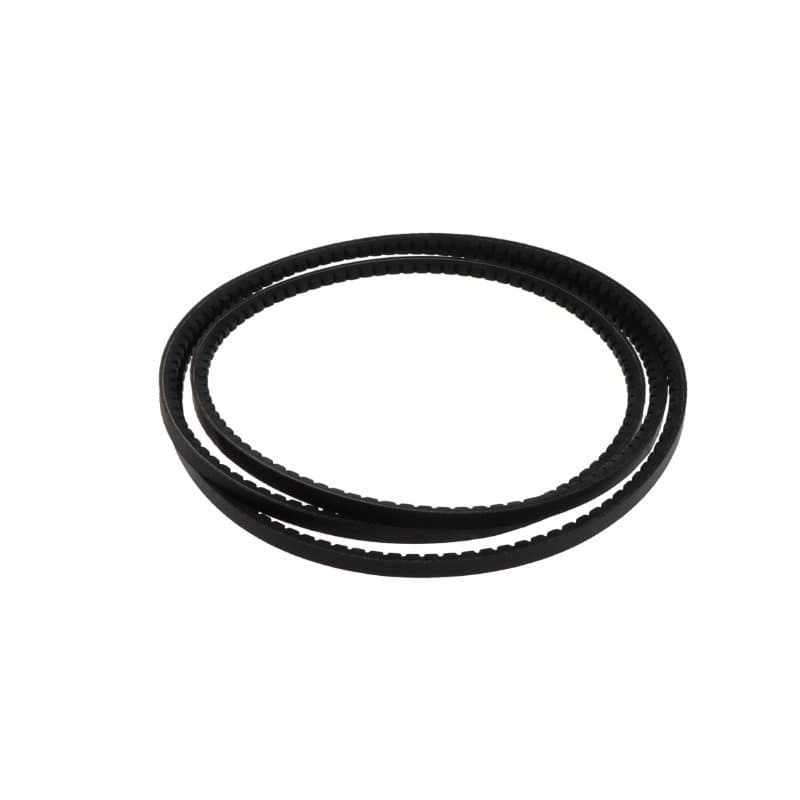

INNE 5VX900 is a cogged narrow v-belt (rma/mpta) in section 5VX / 15NX, 15 × 13 mm (top width × height), length La 2,286 mm. The section is defined by RMA / MPTA, so the belt fits any pulley of the same section.

Lengths of this belt: Ld – datum length (effective Lw/Lp) 2,275 mm, Li – inside length 2,215 mm, La – outside length 2,286 mm. Orders and pulley calculations use the datum length Ld; the inside length Li is the one you can measure with a tape.

Raw edge, cogged belt — it bends over smaller pulleys and runs cooler than a wrapped belt of the same section.

The smallest recommended pulley diameter is 112 mm; on a smaller pulley the belt fails sooner. Mass per metre 0.183 kg/m. Order belts for one drive as a matched set from one batch — a length difference makes one belt do the work of two.

Parts like this are typically used in: napędy maszyn, sprężarki, wentylatory i pompy, kombajny i maszyny rolnicze.

Section dimensions and length conversions come from the manufacturer catalogue (Katalog pasów klinowych Optibelt). Net price PLN 74.14 for businesses; a VAT invoice via KSeF with every order and fast shipping.
