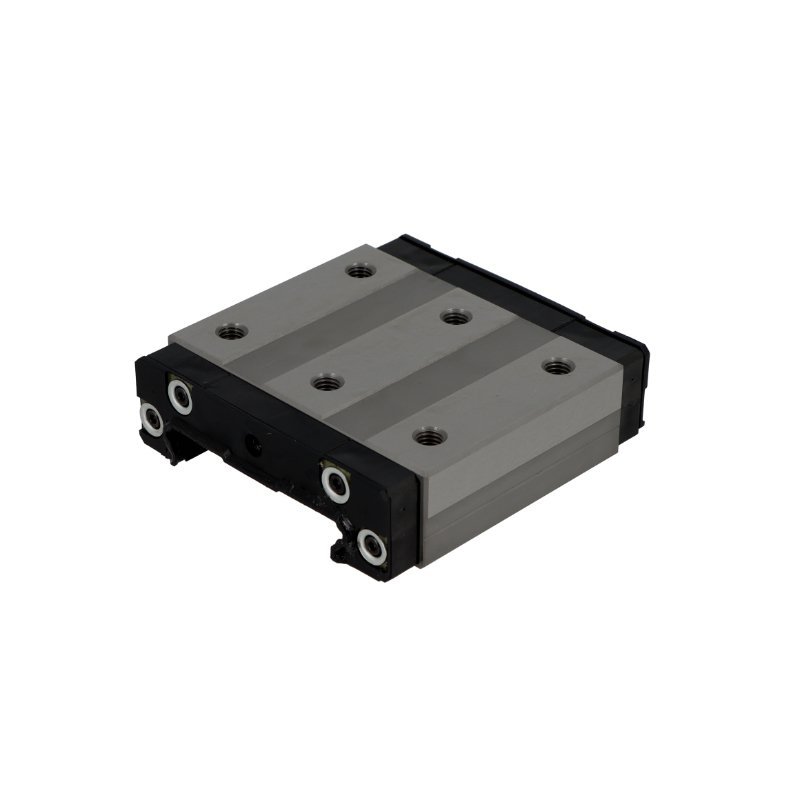

Linear carriage
HRW35 CRSSTHK
- Basic dynamic load rating C
- 27.2 kN
- Basic static load rating C0
- 45.9 kN
- Mass
- 1.2 kg
Available in 1–2 days
Net price per pcPLN 690.93PLN 849.84 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 100 mm
- H
- overall height (carriage on rail)
- 35 mm
- L
- overall carriage length
- 106.6 mm
- L1
- body length (without end seals)
- 77.6 mm
- JB
- mounting hole spacing — across
- 76 mm
- JL
- corner hole spacing — along
- 50 mm
- A1
- rail flank to carriage side
- 15.5 mm
- b
- rail width
- 69 mm
- h
- rail height
- 19 mm
- jL
- rail hole pitch
- 80 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M8 × 8 mm |
|---|---|
| matching rail | HRW35 |
Nośność i prędkość
| Basic dynamic load rating C | 27.2 kN |
|---|---|
| Basic static load rating C0 | 45.9 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 529 / 529 / 1,490 Nm |
| Mass | 1.2 kg |
Rail configuration
Rail
HRW35
Dimensions of rail HRW35
- h
- rail height
- 19 mm
- b
- rail width
- 69 mm
- jL
- rail hole pitch
- 80 mm
Set the length and hole layout
Rail HRW35 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR20mm
- Number of holes
- 13
- Rail mass
- 9.9 kg
- Ordering designation
- HRW35/1000-20/20
Max. 3,000 mm in one piece — longer runs are made of sections.
Browse HRW35 rails in the catalogueEquivalents
HRW35 CRSS bearings with the same dimensions from other manufacturers. Compare price and lead time.
