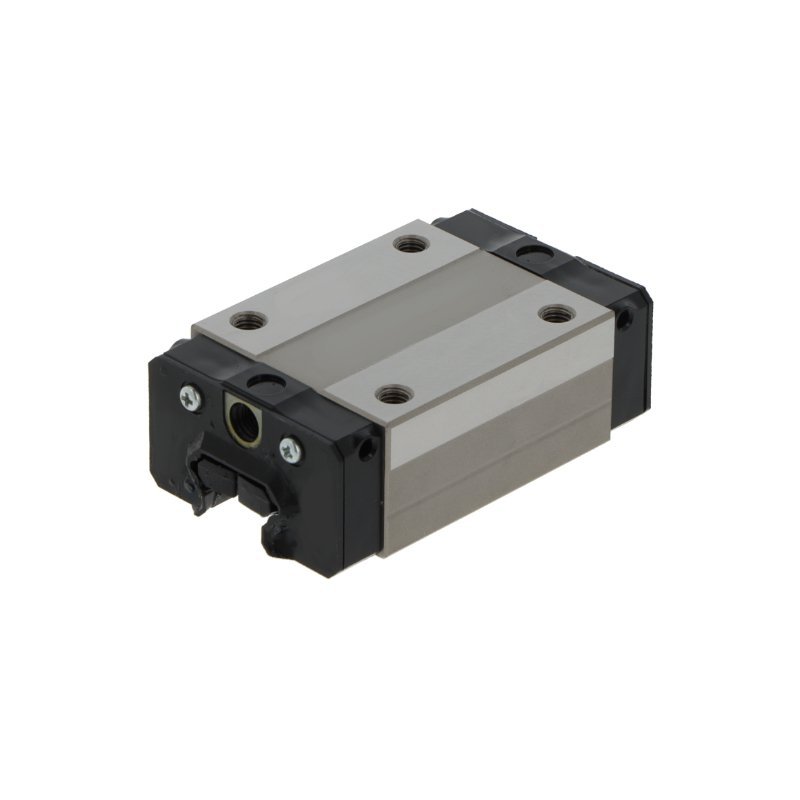

Linear carriage
HSR55 RSSTHK
- Basic dynamic load rating C
- 88.5 kN
- Basic static load rating C0
- 137 kN
- Mass
- 4.3 kg
Available in 1–2 days
Net price per pcPLN 969.41PLN 1,192.37 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 100 mm
- H
- overall height (carriage on rail)
- 80 mm
- L
- overall carriage length
- 163 mm
- L1
- body length (without end seals)
- 118 mm
- JB
- mounting hole spacing — across
- 75 mm
- JL
- corner hole spacing — along
- 75 mm
- A1
- rail flank to carriage side
- 23.5 mm
- b
- rail width
- 53 mm
- h
- rail height
- 44 mm
- jL
- rail hole pitch
- 120 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M12 × 18 mm |
|---|---|
| matching rail | HSR55 |
Nośność i prędkość
| Basic dynamic load rating C | 88.5 kN |
|---|---|
| Basic static load rating C0 | 137 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 2,450 / 2,450 / 3,200 Nm |
| Mass | 4.3 kg |
Rail configuration
Rail
HSR55
Dimensions of rail HSR55
- h
- rail height
- 44 mm
- b
- rail width
- 53 mm
- jL
- rail hole pitch
- 120 mm
Set the length and hole layout
Rail HSR55 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR80mm
- Number of holes
- 8
- Rail mass
- 15.1 kg
- Ordering designation
- HSR55/1000-80/80
Max. 3,060 mm in one piece — longer runs are made of sections.
