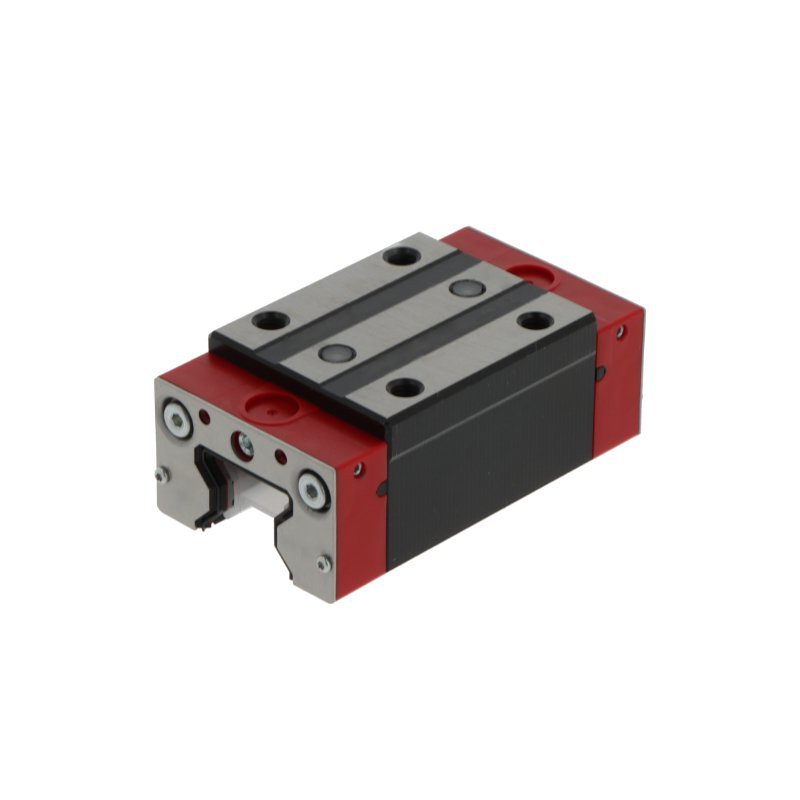

Linear carriage
MRW65 CG2V1SCHNEEBERGER
- Basic dynamic load rating C
- 232 kN
- Basic static load rating C0
- 419 kN
- Mass
- 8 kg
Available in 1–2 days
Net price per pcPLN 1,947.99PLN 2,396.03 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 126 mm
- H
- overall height (carriage on rail)
- 90 mm
- L
- overall carriage length
- 207 mm
- L1
- body length (without end seals)
- 148.5 mm
- JB
- mounting hole spacing — across
- 76 mm
- JL
- corner hole spacing — along
- 70 mm
- A1
- rail flank to carriage side
- 31.5 mm
- b
- rail width
- 63 mm
- h
- rail height
- 58 mm
- jL
- rail hole pitch
- 75 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M16 × 20 mm |
|---|---|
| matching rail | MR S 65 · screws M16 |
Nośność i prędkość
| Basic dynamic load rating C | 232 kN |
|---|---|
| Basic static load rating C0 | 419 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 16,446 / 10,754 / 10,754 Nm |
| Mass | 8 kg |
Rail configuration
Rail
MR S 65
Dimensions of rail MR S 65
- h
- rail height
- 58 mm
- b
- rail width
- 63 mm
- jL
- rail hole pitch
- 75 mm
Set the length and hole layout
Rail MR S 65 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR50mm
- Number of holes
- 13
- Rail mass
- 22.8 kg
- Ordering designation
- MR S 65/1000-50/50
Max. 6,000 mm in one piece — longer runs are made of sections.
Browse MR S 65 rails in the catalogueEquivalents
MRW65 CG2V1 bearings with the same dimensions from other manufacturers. Compare price and lead time.
