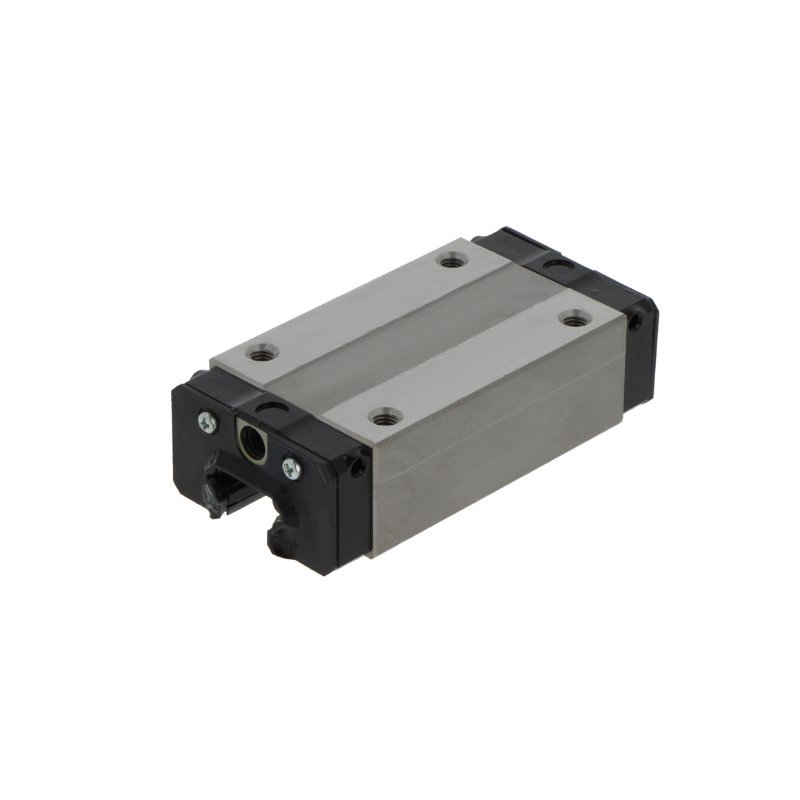

Linear carriage
SHS55 LVSSTHK
- Basic dynamic load rating C
- 161 kN
- Basic static load rating C0
- 259 kN
- Mass
- 5.23 kg
Available in 1–2 days
Net price per pcPLN 1,401.14PLN 1,723.40 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 100 mm
- H
- overall height (carriage on rail)
- 70 mm
- L
- overall carriage length
- 213 mm
- L1
- body length (without end seals)
- 173 mm
- JB
- mounting hole spacing — across
- 75 mm
- JL
- corner hole spacing — along
- 95 mm
- A1
- rail flank to carriage side
- 23.5 mm
- b
- rail width
- 53 mm
- h
- rail height
- 38 mm
- jL
- rail hole pitch
- 120 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M12 × 15 mm |
|---|---|
| matching rail | SHS55 |
Nośność i prędkość
| Basic dynamic load rating C | 161 kN |
|---|---|
| Basic static load rating C0 | 259 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 6,680 / 6,680 / 6,440 Nm |
| Mass | 5.23 kg |
Rail configuration
Rail
SHS55
Dimensions of rail SHS55
- h
- rail height
- 38 mm
- b
- rail width
- 53 mm
- jL
- rail hole pitch
- 120 mm
Set the length and hole layout
Rail SHS55 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR80mm
- Number of holes
- 8
- Rail mass
- 14.5 kg
- Ordering designation
- SHS55/1000-80/80
Max. 3,060 mm in one piece — longer runs are made of sections.
