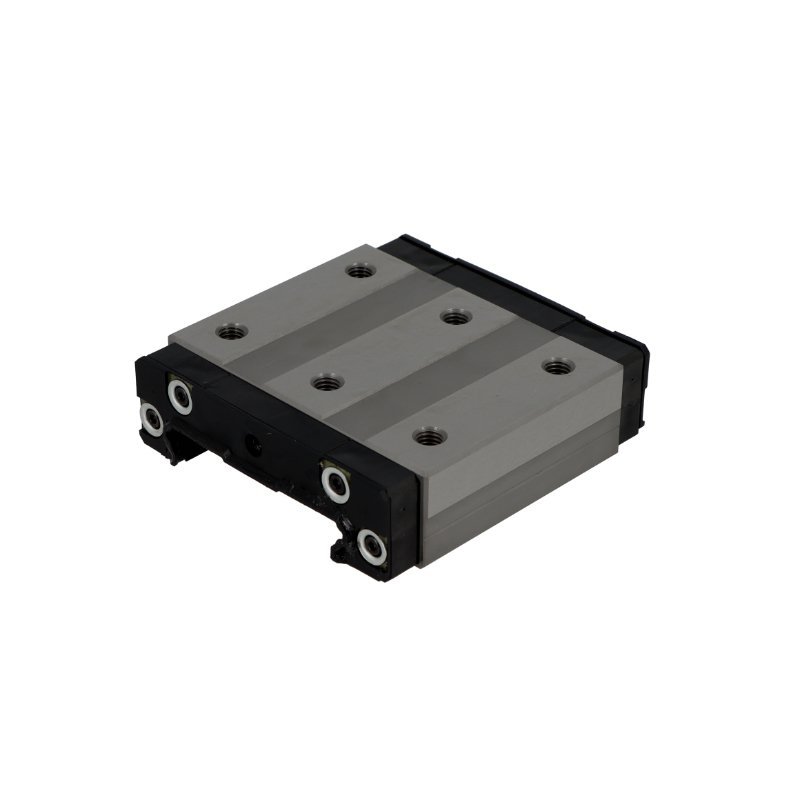

Linear carriage
HSV25 R1SSTHK
- Basic dynamic load rating C
- 27.6 kN
- Basic static load rating C0
- 36.4 kN
- Mass
- 0.54 kg
Available in 1–2 days
Net price per pcPLN 184.30PLN 226.69 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 48 mm
- H
- overall height (carriage on rail)
- 40 mm
- L
- overall carriage length
- 83.1 mm
- L1
- body length (without end seals)
- 59.5 mm
- JB
- mounting hole spacing — across
- 35 mm
- JL
- corner hole spacing — along
- 35 mm
- A1
- rail flank to carriage side
- 12.5 mm
- b
- rail width
- 23 mm
- h
- rail height
- 22 mm
- jL
- rail hole pitch
- 60 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M6 × 8 mm |
|---|---|
| matching rail | HSV25 |
Nośność i prędkość
| Basic dynamic load rating C | 27.6 kN |
|---|---|
| Basic static load rating C0 | 36.4 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 324 / 324 / 366 Nm |
| Mass | 0.54 kg |
Rail configuration
Rail
HSV25
Dimensions of rail HSV25
- h
- rail height
- 22 mm
- b
- rail width
- 23 mm
- jL
- rail hole pitch
- 60 mm
Set the length and hole layout
Rail HSV25 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR20mm
- Number of holes
- 17
- Rail mass
- 3.3 kg
- Ordering designation
- HSV25/1000-20/20
Max. 3,000 mm in one piece — longer runs are made of sections.
Browse HSV25 rails in the catalogueEquivalents
HSV25 R1SS bearings with the same dimensions from other manufacturers. Compare price and lead time.
