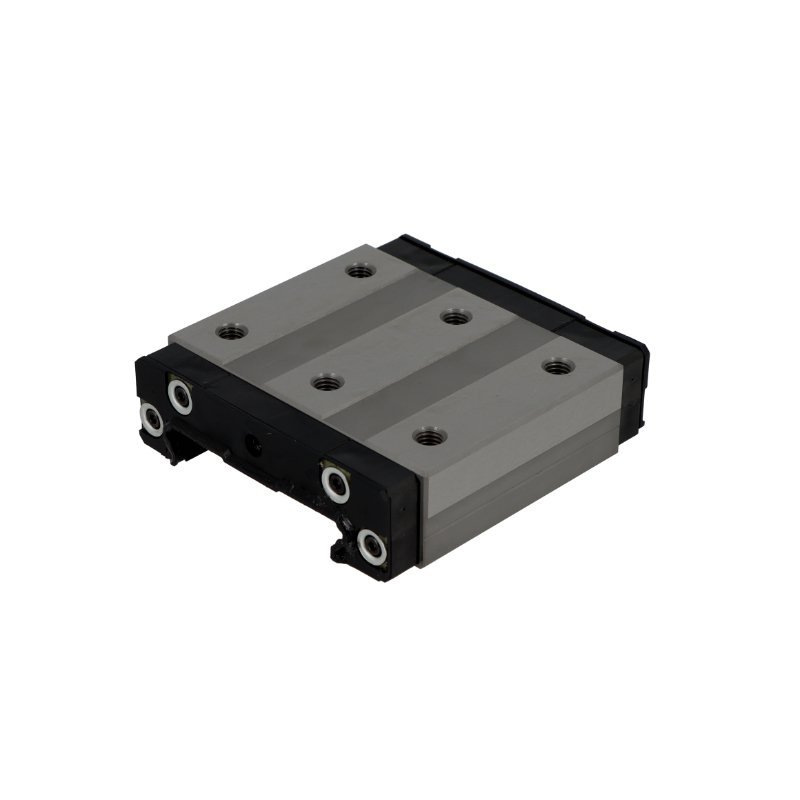

Linear carriage
HSV35 R1SSTHK
- Basic dynamic load rating C
- 53.9 kN
- Basic static load rating C0
- 70.2 kN
- Mass
- 1.5 kg
Available in 1–2 days
Net price per pcPLN 262.54PLN 322.92 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 70 mm
- H
- overall height (carriage on rail)
- 55 mm
- L
- overall carriage length
- 109.4 mm
- L1
- body length (without end seals)
- 80.4 mm
- JB
- mounting hole spacing — across
- 50 mm
- JL
- corner hole spacing — along
- 50 mm
- A1
- rail flank to carriage side
- 18 mm
- b
- rail width
- 34 mm
- h
- rail height
- 29 mm
- jL
- rail hole pitch
- 80 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M8 × 12 mm |
|---|---|
| matching rail | HSV35 |
Nośność i prędkość
| Basic dynamic load rating C | 53.9 kN |
|---|---|
| Basic static load rating C0 | 70.2 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 895 / 895 / 1,050 Nm |
| Mass | 1.5 kg |
Rail configuration
Rail
HSV35
Dimensions of rail HSV35
- h
- rail height
- 29 mm
- b
- rail width
- 34 mm
- jL
- rail hole pitch
- 80 mm
Set the length and hole layout
Rail HSV35 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR20mm
- Number of holes
- 13
- Rail mass
- 6.6 kg
- Ordering designation
- HSV35/1000-20/20
Max. 3,000 mm in one piece — longer runs are made of sections.
