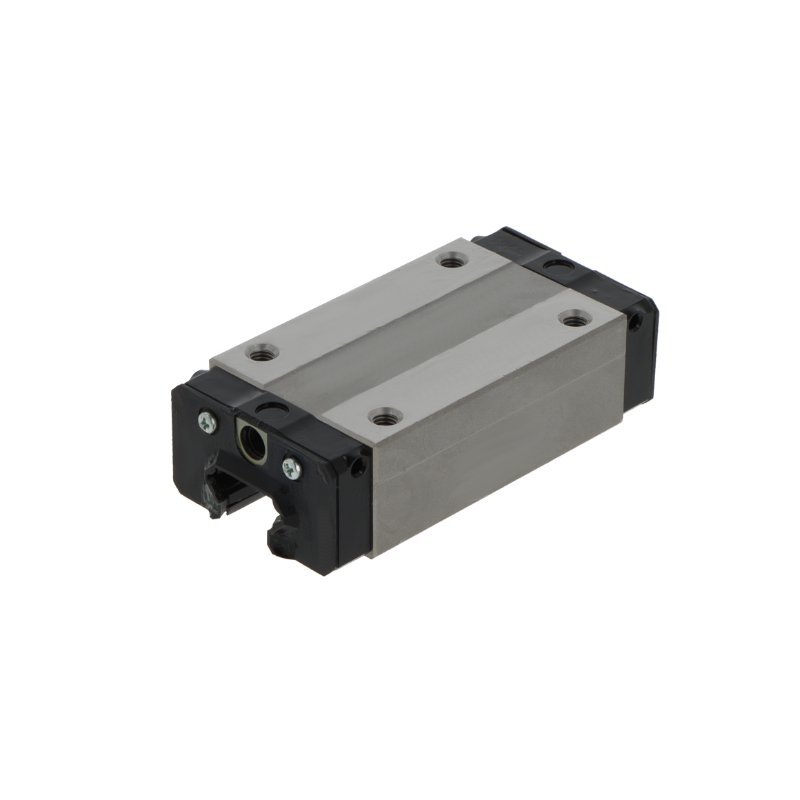

Linear carriage
SHS30 LVQZDDHHTHK
- Basic dynamic load rating C
- 54.2 kN
- Basic static load rating C0
- 88.8 kN
- Mass
- 1.16 kg
Available in 1–2 days
Net price per pcPLN 833.82PLN 1,025.60 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 60 mm
- H
- overall height (carriage on rail)
- 42 mm
- L
- overall carriage length
- 131 mm
- L1
- body length (without end seals)
- 105 mm
- JB
- mounting hole spacing — across
- 40 mm
- JL
- corner hole spacing — along
- 60 mm
- A1
- rail flank to carriage side
- 16 mm
- b
- rail width
- 28 mm
- h
- rail height
- 23 mm
- jL
- rail hole pitch
- 80 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M8 × 8 mm |
|---|---|
| matching rail | SHS30 |
Nośność i prędkość
| Basic dynamic load rating C | 54.2 kN |
|---|---|
| Basic static load rating C0 | 88.8 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 1,360 / 1,360 / 1,150 Nm |
| Mass | 1.16 kg |
Rail configuration
Rail
SHS30
Dimensions of rail SHS30
- h
- rail height
- 23 mm
- b
- rail width
- 28 mm
- jL
- rail hole pitch
- 80 mm
Set the length and hole layout
Rail SHS30 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR20mm
- Number of holes
- 13
- Rail mass
- 4.5 kg
- Ordering designation
- SHS30/1000-20/20
Max. 3,000 mm in one piece — longer runs are made of sections.
