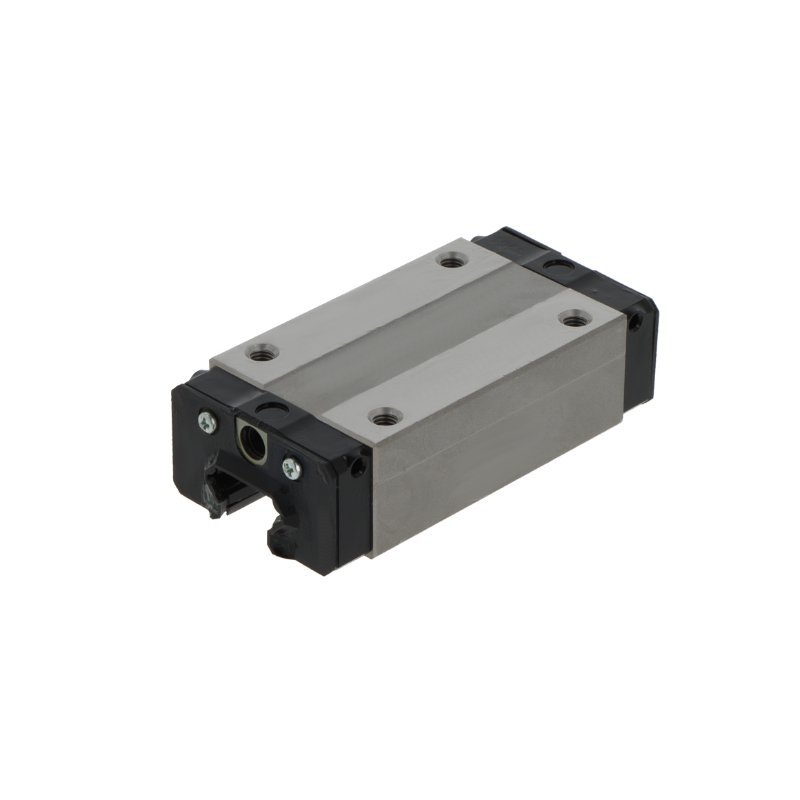

Linear carriage
SHS45 LVSSTHK
- Basic dynamic load rating C
- 100 kN
- Basic static load rating C0
- 166 kN
- Mass
- 3.19 kg
Available in 1–2 days
Net price per pcPLN 859.14PLN 1,056.74 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 86 mm
- H
- overall height (carriage on rail)
- 60 mm
- L
- overall carriage length
- 174 mm
- L1
- body length (without end seals)
- 140 mm
- JB
- mounting hole spacing — across
- 60 mm
- JL
- corner hole spacing — along
- 80 mm
- A1
- rail flank to carriage side
- 20.5 mm
- b
- rail width
- 45 mm
- h
- rail height
- 32 mm
- jL
- rail hole pitch
- 105 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M10 × 15 mm |
|---|---|
| matching rail | SHS45 |
Nośność i prędkość
| Basic dynamic load rating C | 100 kN |
|---|---|
| Basic static load rating C0 | 166 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 3,460 / 3,460 / 3,530 Nm |
| Mass | 3.19 kg |
Rail configuration
Rail
SHS45
Dimensions of rail SHS45
- h
- rail height
- 32 mm
- b
- rail width
- 45 mm
- jL
- rail hole pitch
- 105 mm
Set the length and hole layout
Rail SHS45 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR27.5mm
- Number of holes
- 10
- Rail mass
- 10.4 kg
- Ordering designation
- SHS45/1000-27.5/27.5
Max. 3,090 mm in one piece — longer runs are made of sections.
Browse SHS45 rails in the catalogueEquivalents
SHS45 LVSS bearings with the same dimensions from other manufacturers. Compare price and lead time.
