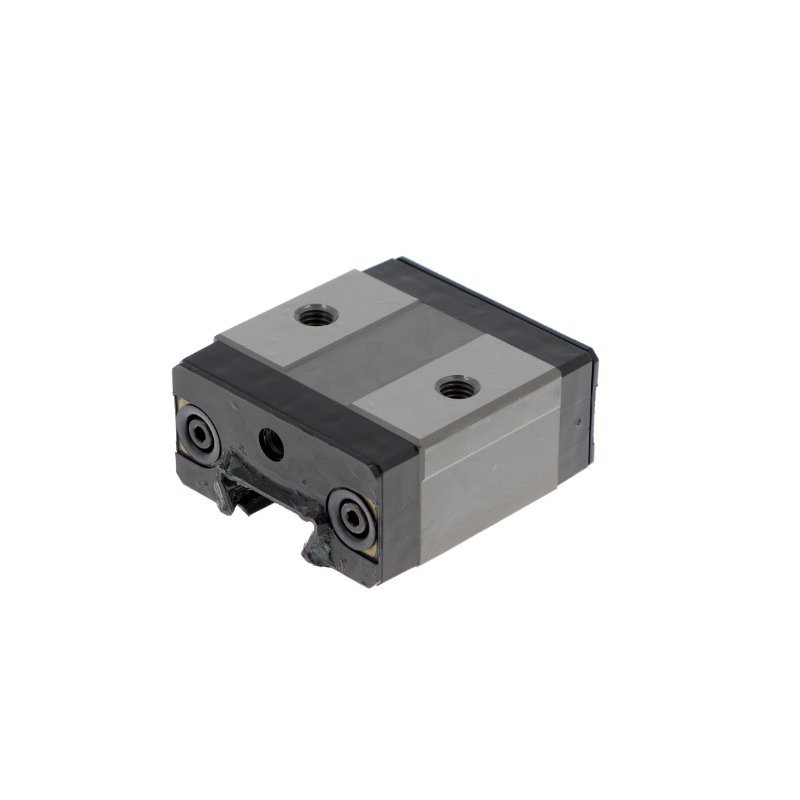

Linear carriage
SSR20 XVQZSSTHK
- Basic dynamic load rating C
- 13.4 kN
- Basic static load rating C0
- 14.4 kN
- Mass
- 0.14 kg
Available in 1–2 days
Net price per pcPLN 377.72PLN 464.60 gross (incl. VAT)
Quantitypcs
Dimensions
- B
- carriage width
- 42 mm
- H
- overall height (carriage on rail)
- 28 mm
- L
- overall carriage length
- 47.7 mm
- L1
- body length (without end seals)
- 27.8 mm
- JB
- mounting hole spacing — across
- 32 mm
- JL
- corner hole spacing — along
- 0 mm
- A1
- rail flank to carriage side
- 11 mm
- b
- rail width
- 20 mm
- h
- rail height
- 15.5 mm
- jL
- rail hole pitch
- 60 mm
Konstrukcja
| carriage mounting thread (G₂ × T₅) | M5 × 8 mm |
|---|---|
| matching rail | SSR20 |
Nośność i prędkość
| Basic dynamic load rating C | 13.4 kN |
|---|---|
| Basic static load rating C0 | 14.4 kN |
| static moments M₀ₓ / M₀ᵧ / M₀z | 52 / 33 / 111 Nm |
| Mass | 0.14 kg |
Rail configuration
Rail
SSR20
Dimensions of rail SSR20
- h
- rail height
- 15.5 mm
- b
- rail width
- 20 mm
- jL
- rail hole pitch
- 60 mm
Set the length and hole layout
Rail SSR20 cut to length. Enter the overall length and the hole layout — we work out the rest.
Right end to last hole axis aR20mm
- Number of holes
- 17
- Rail mass
- 2.1 kg
- Ordering designation
- SSR20/1000-20/20
Max. 3,000 mm in one piece — longer runs are made of sections.
