Deep groove ball bearing 6009-RS – 45×75×16 mm
5 offers · 3 manufacturers · net prices from PLN 30.99 · dispatch in 2 working days
6009-RS is a deep groove ball bearing with a 45 mm bore, 75 mm outside diameter and 16 mm width, with one rubber contact seal (RS). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 45 mm
- outside D
- 75 mm
- width B
- 16 mm
- sealing
- RS
- mass
- 0.24 kg
- net price from
- PLN 30.99
Brands and prices 6009-RS
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

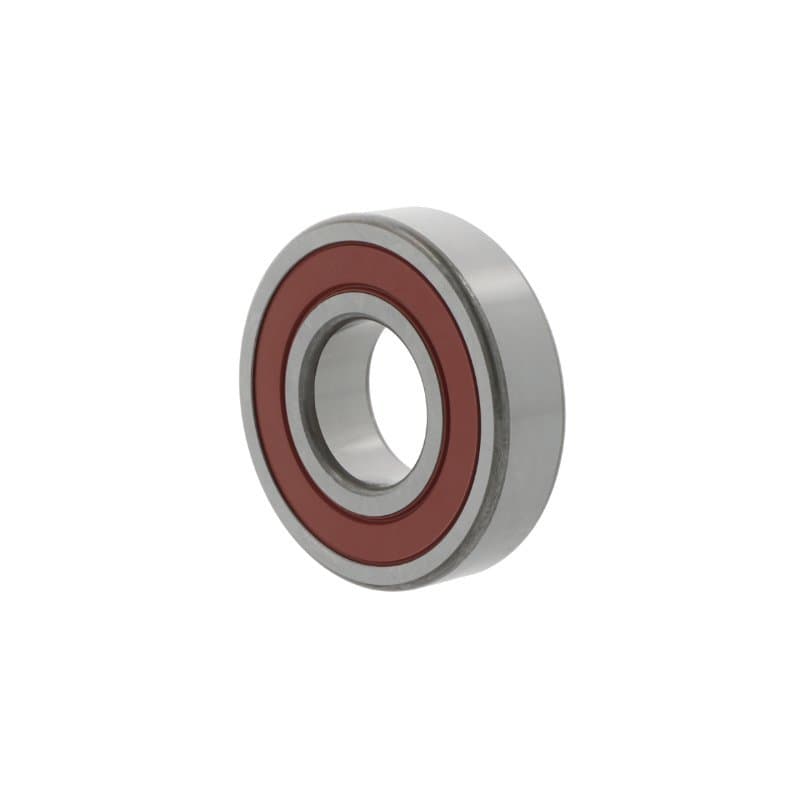

| NKE | 6009-RSR | CN | PLN 30.99PLN 38.12 gross | supplier stockdispatch in 2 working days | |
| FAG | 6009-RSR | CN | PLN 35.53PLN 43.70 gross | supplier stockdispatch in 2 working days | |
| FAG | 6009-RSRC3 | C3 | PLN 36.67PLN 45.10 gross | supplier stockdispatch in 2 working days | |
| NKE | 6009-RSRC3 | C3 | PLN 39.63PLN 48.74 gross | supplier stockdispatch in 2 working days | |
| SKF | 6009-RS1 | CN | PLN 42.55PLN 52.34 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6009
The same size in another design – open, shielded, tapered bore.
- 6009Open30 offers · from PLN 11.07 net
- 6009-2RS2RS – rubber contact seals, both sides25 offers · from PLN 20.36 net
- 6009-2Z2Z – metal shields, both sides20 offers · from PLN 11.07 net
- 6009-ZZ – metal shield, one side7 offers · from PLN 21.88 net
- 6009-2RZ2RZ – rubber non-contact seals, both sides2 offers · from PLN 32.89 net
- 6009 KOpen · Tapered bore1 offer · from PLN 24.78 net
- 6009-RZRZ – rubber non-contact seal, one side1 offer · from PLN 76.67 net
How manufacturers designate 6009-RS
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6009-RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6009-RS
What are the dimensions of bearing 6009-RS?
Bore 45 mm, outside diameter 75 mm, width 16 mm. Standardised dimensions – the same for every manufacturer.
Are 6009-RS bearings from different brands interchangeable?
Yes. 6009-RSR NKE, 6009-RSR FAG, 6009-RS1 SKF are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6009-RS cost?
At Castomer from PLN 30.99 to PLN 42.55 net per piece depending on the manufacturer (NKE, FAG, SKF). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6009-RS?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
