Deep groove ball bearing 6009-Z – 45×75×16 mm
7 offers · 5 manufacturers · net prices from PLN 21.88 · dispatch in 2 working days
6009-Z is a deep groove ball bearing with a 45 mm bore, 75 mm outside diameter and 16 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 45 mm
- outside D
- 75 mm
- width B
- 16 mm
- sealing
- Z
- mass
- 0.24 kg
- net price from
- PLN 21.88
Brands and prices 6009-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

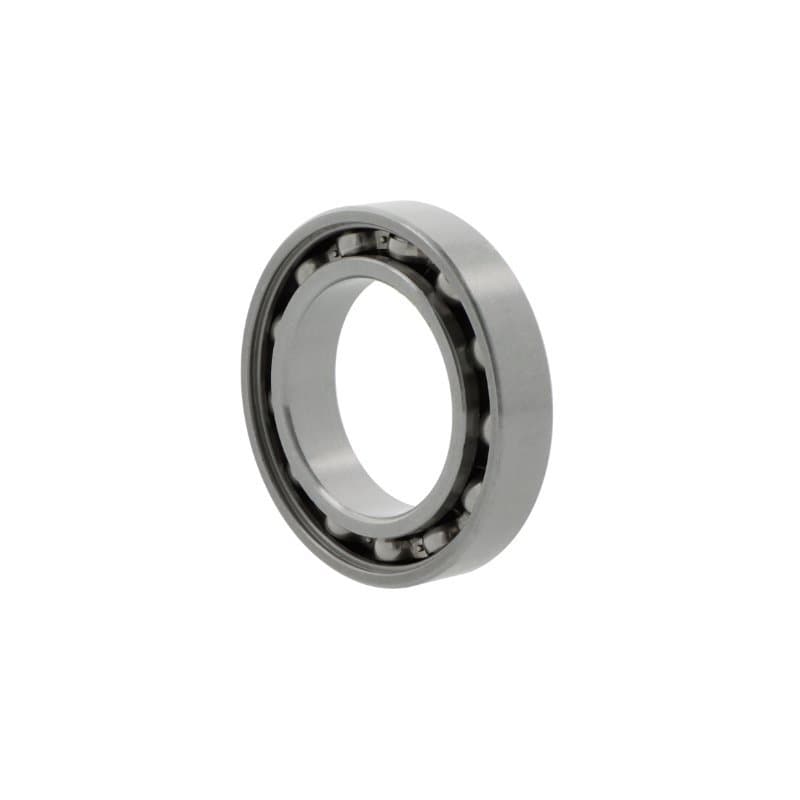

| NACHI | 6009-ZECMEC design, machined brass cage (SKF) | CN | PLN 21.88PLN 26.91 gross | supplier stockdispatch in 2 working days | |
| NKE | 6009-Z | CN | PLN 25.54PLN 31.41 gross | supplier stockdispatch in 2 working days | |
| NSK | 6009 Z | CN | PLN 26.94PLN 33.14 gross | supplier stockdispatch in 2 working days | |
| NKE | 6009-ZC3 | C3 | PLN 32.73PLN 40.26 gross | supplier stockdispatch in 2 working days | |
| SKF | 6009-ZC3 | C3 | PLN 37.37PLN 45.97 gross | supplier stockdispatch in 2 working days | |
| SKF | 6009-Z | CN | PLN 40.87PLN 50.27 gross | supplier stockdispatch in 2 working days | |
| SNR | 6009 FT150ZZ | CN | PLN 76.24PLN 93.78 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6009
The same size in another design – open, shielded, tapered bore.
- 6009Open30 offers · from PLN 11.07 net
- 6009-2RS2RS – rubber contact seals, both sides25 offers · from PLN 20.36 net
- 6009-2Z2Z – metal shields, both sides20 offers · from PLN 11.07 net
- 6009-RSRS – rubber contact seal, one side5 offers · from PLN 30.99 net
- 6009-2RZ2RZ – rubber non-contact seals, both sides2 offers · from PLN 32.89 net
- 6009 KOpen · Tapered bore1 offer · from PLN 24.78 net
- 6009-RZRZ – rubber non-contact seal, one side1 offer · from PLN 76.67 net
How manufacturers designate 6009-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| NKE | 6009-Z | Z – metal shield, one side |
| SKF | 6009-ZC3 | Z – metal shield, one side |
| NACHI | 6009-ZECM | Z – metal shield, one side |
| NSK | 6009 Z | Z – metal shield, one side |
| SNR | 6009 FT150ZZ | Z – metal shield, one side |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6009-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6009-Z
What are the dimensions of bearing 6009-Z?
Bore 45 mm, outside diameter 75 mm, width 16 mm. Standardised dimensions – the same for every manufacturer.
Are 6009-Z bearings from different brands interchangeable?
Yes. 6009-Z NKE, 6009-ZC3 SKF, 6009-ZECM NACHI, 6009 Z NSK, 6009 FT150ZZ SNR are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6009-Z cost?
At Castomer from PLN 21.88 to PLN 76.24 net per piece depending on the manufacturer (NKE, SKF, NACHI, NSK, SNR). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6009-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
