Deep groove ball bearing 6208-RS – 40×80×18 mm

10 offers · 4 manufacturers · net prices from PLN 26.30 · dispatch in 2 working days

6208-RS is a deep groove ball bearing with a 40 mm bore, 80 mm outside diameter and 18 mm width, with one rubber contact seal (RS). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 40 mm
outside D: 80 mm
width B: 18 mm
sealing: RS
mass: 0.37 kg
net price from: PLN 26.30

Dimension drawing 6208-RS – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	40 mm
D – outside diameter	80 mm
B – width	18 mm
dynamic load rating C	32.5 kN (per SKF catalogue)
static load rating C₀	19 kN (per SKF catalogue)
mass	0.37 kg

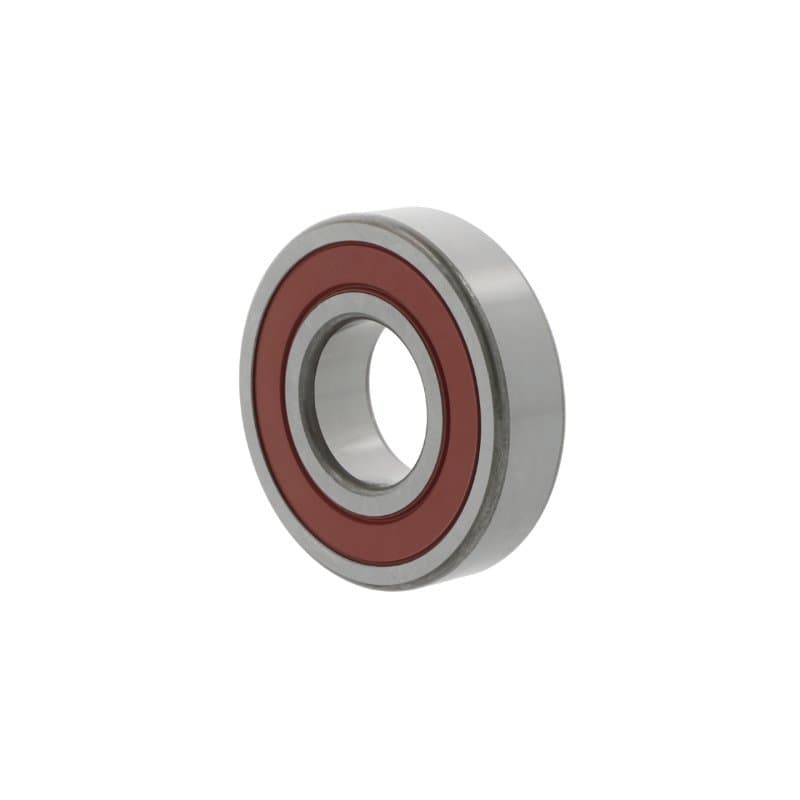

Pictured: NSK 6208-DUC3. Every brand has its own product page with photo and full description.

Brands and prices 6208-RS

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
NSK	6208-DUC3	C3	PLN 26.30PLN 32.35 gross	supplier stockdispatch in 2 working days
FAG	6208-C2HRSC3	C3	PLN 27.37PLN 33.67 gross	supplier stockdispatch in 2 working days
FAG	6208-C2HRS	C2	PLN 27.37PLN 33.67 gross	supplier stockdispatch in 2 working days
NKE	6208-RSRC3	C3	PLN 29.92PLN 36.80 gross	supplier stockdispatch in 2 working days
NKE	6208-RSR	CN	PLN 29.92PLN 36.80 gross	supplier stockdispatch in 2 working days
FAG	6208-CHRSC3	C3	PLN 36.88PLN 45.36 gross	supplier stockdispatch in 2 working days
FAG	6208-CHRS	CN	PLN 36.88PLN 45.36 gross	supplier stockdispatch in 2 working days
KOYO	6208 RS	CN	PLN 37.37PLN 45.97 gross	supplier stockdispatch in 2 working days
FAG	6208-RSR	CN	PLN 39.26PLN 48.29 gross	supplier stockdispatch in 2 working days
FAG	6208-C-2BRS-C3	C3	PLN 41.09PLN 50.54 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6208

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6208-RS

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	6208-C2HRSC3	RS – rubber contact seal, one side
NKE	6208-RSRC3	RS – rubber contact seal, one side
NSK	6208-DUC3	RS – rubber contact seal, one side
KOYO	6208 RS	RS – rubber contact seal, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6208-RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6208-RS

What are the dimensions of bearing 6208-RS?

Bore 40 mm, outside diameter 80 mm, width 18 mm. Standardised dimensions – the same for every manufacturer.

Are 6208-RS bearings from different brands interchangeable?

Yes. 6208-C2HRSC3 FAG, 6208-RSRC3 NKE, 6208-DUC3 NSK, 6208 RS KOYO are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6208-RS cost?

At Castomer from PLN 26.30 to PLN 41.09 net per piece depending on the manufacturer (FAG, NKE, NSK, KOYO). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6208-RS?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
