Deep groove ball bearing 6208-Z – 40×80×18 mm
14 offers · 7 manufacturers · net prices from PLN 22.67 · dispatch in 2 working days
6208-Z is a deep groove ball bearing with a 40 mm bore, 80 mm outside diameter and 18 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 40 mm
- outside D
- 80 mm
- width B
- 18 mm
- sealing
- Z
- mass
- 0.37 kg
- net price from
- PLN 22.67
Brands and prices 6208-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

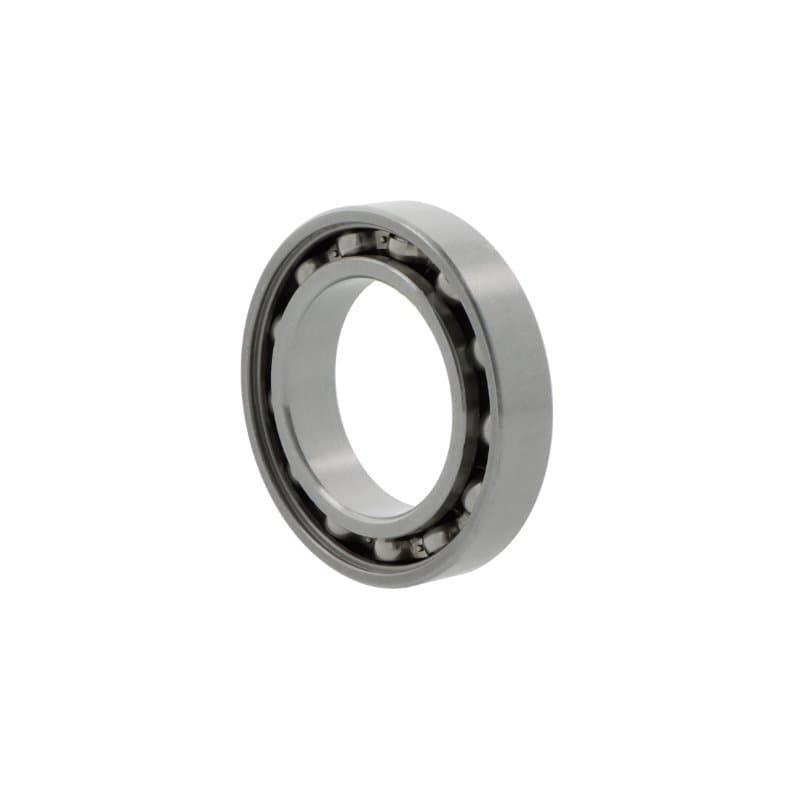

| INNE | 6208-ZEC3reinforced design, higher load rating | C3 | PLN 22.67PLN 27.88 gross | supplier stockdispatch in 2 working days | |
| INNE | 6208-ZECMEC design, machined brass cage (SKF) | CN | PLN 22.67PLN 27.88 gross | supplier stockdispatch in 2 working days | |
| FAG | 6208-C2ZC3 | C3 | PLN 24.19PLN 29.75 gross | supplier stockdispatch in 2 working days | |
| FAG | 6208-C2Z | C2 | PLN 24.19PLN 29.75 gross | supplier stockdispatch in 2 working days | |
| NKE | 6208-Z | CN | PLN 25.93PLN 31.89 gross | supplier stockdispatch in 2 working days | |
| NKE | 6208-ZC3 | C3 | PLN 26.46PLN 32.55 gross | supplier stockdispatch in 2 working days | |
| NSK | 6208-ZC3 | C3 | PLN 27.37PLN 33.67 gross | supplier stockdispatch in 2 working days | |
| FAG | 6208-CZC3 | C3 | PLN 32.62PLN 40.12 gross | supplier stockdispatch in 2 working days | |
| SKF | 6208-ZC3 | C3 | PLN 42.28PLN 52.00 gross | supplier stockdispatch in 2 working days | |
| SKF | 6208-ZTN9C3glass-fibre reinforced PA66 cage (SKF) | C3 | PLN 52.93PLN 65.10 gross | supplier stockdispatch in 2 working days |
▸Special designs 6208-Z (4) – stainless steel, snap ring, manufacturer specials
| NACHI | 6208-ZENRCMreinforced design, higher load rating, snap ring groove with snap ring, clearance for electric motors (quiet running) | CN | PLN 29.48PLN 36.26 gross | supplier stockdispatch in 2 working days | |
| NSK | 6208 ZNRsnap ring groove with snap ring | CN | PLN 37.10PLN 45.63 gross | supplier stockdispatch in 2 working days | |
| NTN | 6208 ZNRsnap ring groove with snap ring | CN | PLN 47.79PLN 58.78 gross | supplier stockdispatch in 2 working days | |
| SKF | 6208-ZNRsnap ring groove with snap ring | CN | PLN 63.45PLN 78.04 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6208
The same size in another design – open, shielded, tapered bore.
- 6208Open48 offers · from PLN 12.37 net
- 6208-2Z2Z – metal shields, both sides34 offers · from PLN 12.37 net
- 6208-2RS2RS – rubber contact seals, both sides27 offers · from PLN 12.37 net
- 6208-RSRS – rubber contact seal, one side10 offers · from PLN 26.30 net
- 6208-2RZ2RZ – rubber non-contact seals, both sides4 offers · from PLN 30.57 net
- 6208-RZRZ – rubber non-contact seal, one side3 offers · from PLN 82.24 net
- 6208 K-2RS2RS – rubber contact seals, both sides · Tapered bore2 offers · from PLN 48.88 net
How manufacturers designate 6208-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 6208-C2ZC3 | Z – metal shield, one side |
| SKF | 6208-ZC3 | Z – metal shield, one side |
| INNE | 6208-ZEC3 | Z – metal shield, one side |
| NKE | 6208-Z | Z – metal shield, one side |
| NSK | 6208-ZC3 | Z – metal shield, one side |
| NACHI | 6208-ZENRCM | Z – metal shield, one side |
| NTN | 6208 ZNR | Z – metal shield, one side |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6208-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6208-Z
What are the dimensions of bearing 6208-Z?
Bore 40 mm, outside diameter 80 mm, width 18 mm. Standardised dimensions – the same for every manufacturer.
Are 6208-Z bearings from different brands interchangeable?
Yes. 6208-C2ZC3 FAG, 6208-ZC3 SKF, 6208-ZEC3 INNE, 6208-Z NKE, 6208-ZC3 NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6208-Z cost?
At Castomer from PLN 22.67 to PLN 52.93 net per piece depending on the manufacturer (FAG, SKF, INNE, NKE, NSK, NACHI). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6208-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
