Deep groove ball bearing 6316-2Z – 80×170×39 mm

23 offers · 10 manufacturers · net prices from PLN 136.83 · dispatch in 2 working days

6316-2Z is a deep groove ball bearing with a 80 mm bore, 170 mm outside diameter and 39 mm width, with two metal shields (2Z) – non-contact, for higher speeds. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 80 mm
outside D: 170 mm
width B: 39 mm
sealing: 2Z
mass: 1.13 kg
net price from: PLN 136.83

Dimension drawing 6316-2Z – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	80 mm
D – outside diameter	170 mm
B – width	39 mm
dynamic load rating C	130 kN (per SKF catalogue)
static load rating C₀	86.5 kN (per SKF catalogue)
mass	1.13 kg

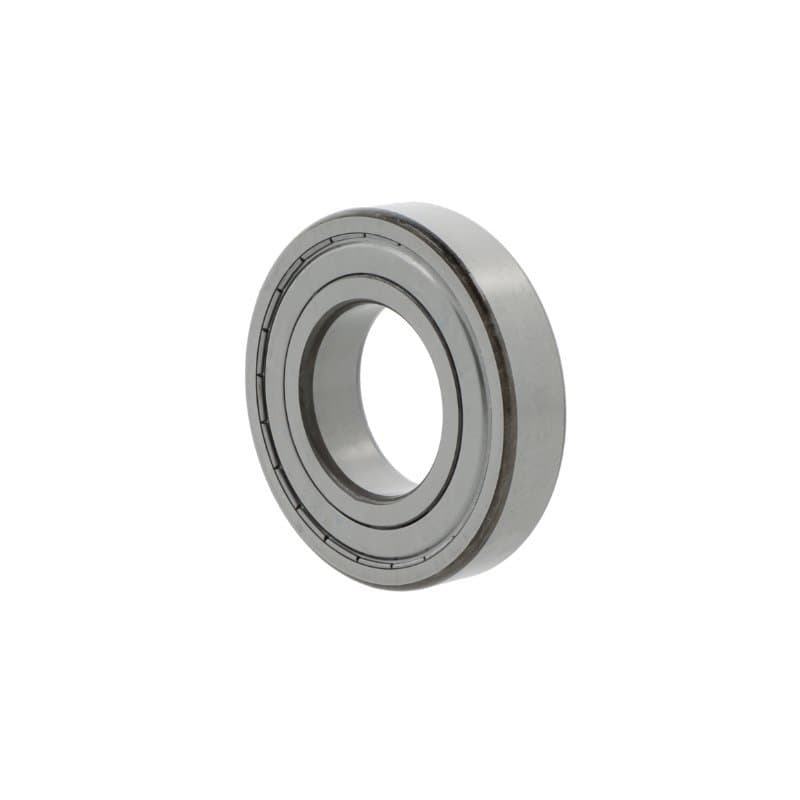

Pictured: ZEN 6316-2ZC3. Every brand has its own product page with photo and full description.

Brands and prices 6316-2Z

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
ZEN	6316-2ZC3	C3	PLN 136.83PLN 168.30 gross	supplier stockdispatch in 2 working days
ZEN	6316-2Z	CN	PLN 136.83PLN 168.30 gross	supplier stockdispatch in 2 working days
NKE	6316-2ZC3	C3	PLN 227.13PLN 279.37 gross	supplier stockdispatch in 2 working days
NACHI	6316 ZZ	CN	PLN 265.36PLN 326.39 gross	supplier stockdispatch in 2 working days
NACHI	6316 ZZC3	C3	PLN 265.36PLN 326.39 gross	supplier stockdispatch in 2 working days
SNR	6316 ZZ	CN	PLN 273.63PLN 336.56 gross	supplier stockdispatch in 2 working days
SNR	6316 ZZC3	C3	PLN 273.63PLN 336.56 gross	supplier stockdispatch in 2 working days
TIMKEN	6316-ZZ	CN	PLN 279.72PLN 344.06 gross	supplier stockdispatch in 2 working days
TIMKEN	6316-ZZ-C3	C3	PLN 279.72PLN 344.06 gross	supplier stockdispatch in 2 working days
KOYO	6316 ZZC3	C3	PLN 283.33PLN 348.50 gross	supplier stockdispatch in 2 working days
KOYO	6316 ZZ	CN	PLN 283.33PLN 348.50 gross	supplier stockdispatch in 2 working days
NTN	6316 ZZCM/5Kclearance for electric motors (quiet running)	CN	PLN 297.11PLN 365.45 gross	supplier stockdispatch in 2 working days
NTN	6316-ZZC35K	C3	PLN 302.62PLN 372.22 gross	supplier stockdispatch in 2 working days
FAG	6316-2ZRC3	C3	PLN 306.78PLN 377.34 gross	supplier stockdispatch in 2 working days
SKF	6316-ZZ	CN	PLN 342.63PLN 421.43 gross	supplier stockdispatch in 2 working days
FAG	6316-2ZR	CN	PLN 346.36PLN 426.02 gross	supplier stockdispatch in 2 working days
SKF	6316-ZZC3	C3	PLN 351.16PLN 431.93 gross	supplier stockdispatch in 2 working days
NSK	6316 ZZ	CN	PLN 360.78PLN 443.76 gross	supplier stockdispatch in 2 working days
NSK	6316 ZZC3	C3	PLN 360.78PLN 443.76 gross	supplier stockdispatch in 2 working days
NSK	6316 ZZC4	C4	PLN 418.02PLN 514.16 gross	supplier stockdispatch in 2 working days
SKF	6316-2Z/C4	C4	PLN 431.72PLN 531.02 gross	supplier stockdispatch in 2 working days
SKF	6316-2Z/C3WT	C3	PLN 553.72PLN 681.08 gross	supplier stockdispatch in 2 working days

▸Special designs 6316-2Z (1) – stainless steel, snap ring, manufacturer specials

SKF

E2.6316-ZZC3

PLN 516.29PLN 635.04 gross

supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6316

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6316-2Z

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
SKF	6316-ZZ	2Z – metal shields, both sides
NSK	6316 ZZ	2Z – metal shields, both sides
ZEN	6316-2ZC3	2Z – metal shields, both sides
NACHI	6316 ZZ	2Z – metal shields, both sides
SNR	6316 ZZ	2Z – metal shields, both sides
TIMKEN	6316-ZZ	2Z – metal shields, both sides
KOYO	6316 ZZC3	2Z – metal shields, both sides
NTN	6316 ZZCM/5K	2Z – metal shields, both sides
FAG	6316-2ZRC3	2Z – metal shields, both sides
NKE	6316-2ZC3	2Z – metal shields, both sides

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6316-2Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6316-2Z

What are the dimensions of bearing 6316-2Z?

Bore 80 mm, outside diameter 170 mm, width 39 mm. Standardised dimensions – the same for every manufacturer.

Are 6316-2Z bearings from different brands interchangeable?

Yes. 6316-ZZ SKF, 6316 ZZ NSK, 6316-2ZC3 ZEN, 6316 ZZ NACHI, 6316 ZZ SNR are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6316-2Z cost?

At Castomer from PLN 136.83 to PLN 553.72 net per piece depending on the manufacturer (SKF, NSK, ZEN, NACHI, SNR, TIMKEN). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6316-2Z?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
