Deep groove ball bearing 6316-Z – 80×170×39 mm
6 offers · 4 manufacturers · net prices from PLN 265.36 · dispatch in 2 working days
6316-Z is a deep groove ball bearing with a 80 mm bore, 170 mm outside diameter and 39 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 80 mm
- outside D
- 170 mm
- width B
- 39 mm
- sealing
- Z
- mass
- 3.7 kg
- net price from
- PLN 265.36
Brands and prices 6316-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

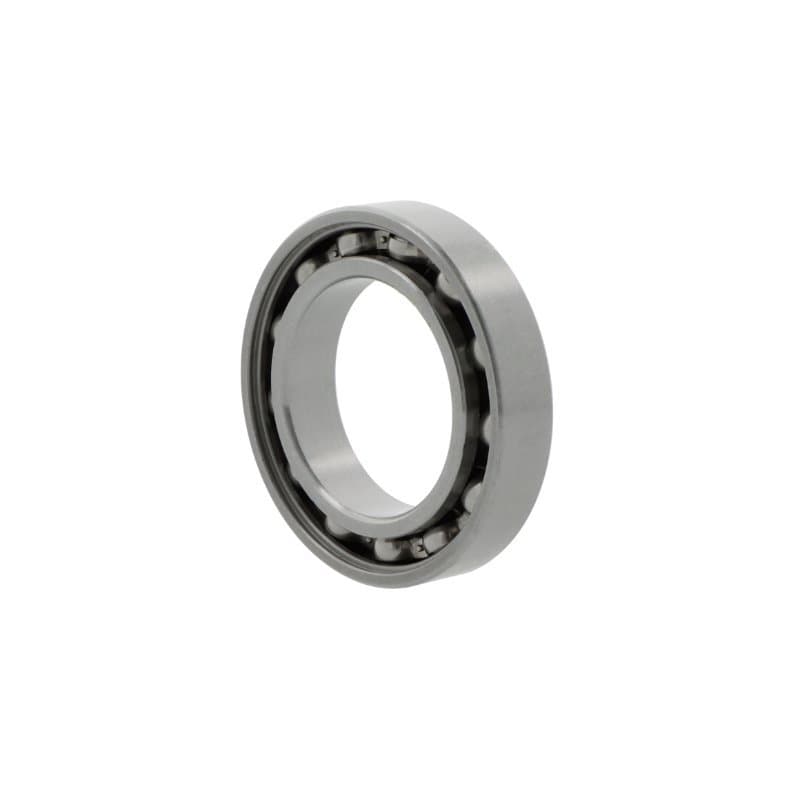

| NACHI | 6316 Z | CN | PLN 265.36PLN 326.39 gross | supplier stockdispatch in 2 working days | |
| FAG | 6316-ZR | CN | PLN 306.78PLN 377.34 gross | supplier stockdispatch in 2 working days | |
| SKF | 6316-ZC3 | C3 | PLN 347.17PLN 427.02 gross | supplier stockdispatch in 2 working days | |
| SKF | 6316-Z | CN | PLN 347.17PLN 427.02 gross | supplier stockdispatch in 2 working days | |
| NSK | 6316-Z | CN | PLN 398.14PLN 489.71 gross | supplier stockdispatch in 2 working days | |
| NSK | 6316 ZC3 | C3 | PLN 398.14PLN 489.71 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6316
The same size in another design – open, shielded, tapered bore.
- 6316Open38 offers · from PLN 126.09 net
- 6316-2Z2Z – metal shields, both sides23 offers · from PLN 136.83 net
- 6316-2RS2RS – rubber contact seals, both sides12 offers · from PLN 145.75 net
- 6316-RZRZ – rubber non-contact seal, one side4 offers · from PLN 1,891.07 net
- 6316-2RZ2RZ – rubber non-contact seals, both sides2 offers · from PLN 365.26 net
- 6316-RSRS – rubber contact seal, one side1 offer · from PLN 347.76 net
How manufacturers designate 6316-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6316-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6316-Z
What are the dimensions of bearing 6316-Z?
Bore 80 mm, outside diameter 170 mm, width 39 mm. Standardised dimensions – the same for every manufacturer.
Are 6316-Z bearings from different brands interchangeable?
Yes. 6316-ZC3 SKF, 6316-Z NSK, 6316 Z NACHI, 6316-ZR FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6316-Z cost?
At Castomer from PLN 265.36 to PLN 398.14 net per piece depending on the manufacturer (SKF, NSK, NACHI, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6316-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
