Deep groove ball bearing 6209 K-2RS – 45×85×19 mm
2 offers · 2 manufacturers · net prices from PLN 85.05 · dispatch in 2 working days

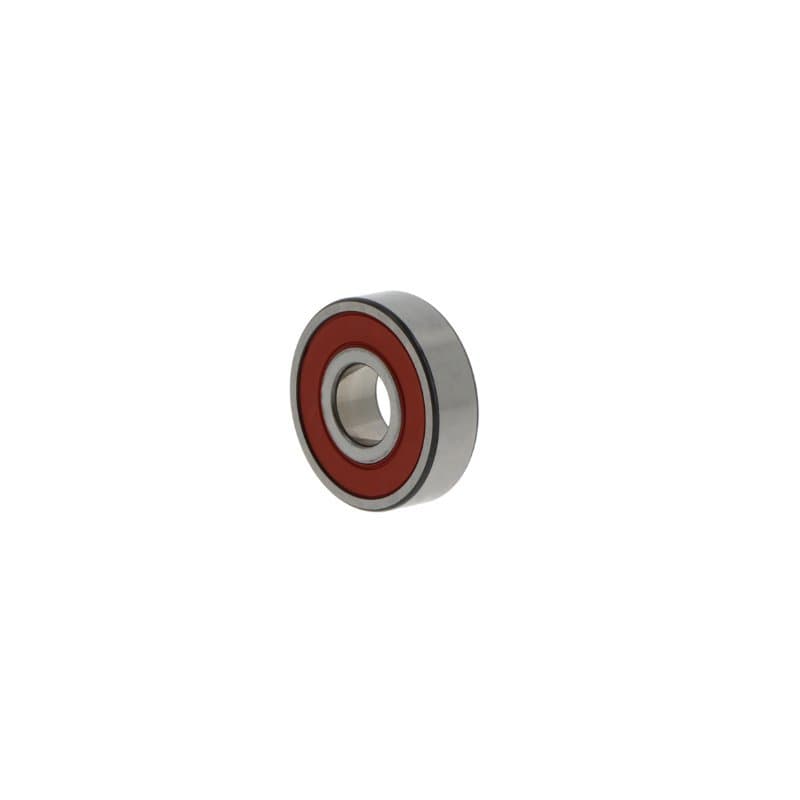

6209 K-2RS is a deep groove ball bearing with a 45 mm bore, 85 mm outside diameter and 19 mm width, with two rubber contact seals (2RS) – greased for life, maintenance-free with a tapered bore (K) for adapter sleeve mounting. The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 45 mm
- outside D
- 85 mm
- width B
- 19 mm
- sealing
- 2RS
- net price from
- PLN 85.05
Brands and prices 6209 K-2RS
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|
| SKF | 6209 K-2RS1tapered bore, taper 1:12 | CN | PLN 85.05PLN 104.61 gross | supplier stockdispatch in 2 working days | |
| FAG | 6209-C-K-2HRStapered bore, taper 1:12 | CN | PLN 97.74PLN 120.22 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6209
The same size in another design – open, shielded, tapered bore.
- 6209Open41 offers · from PLN 14.15 net
- 6209-2Z2Z – metal shields, both sides29 offers · from PLN 14.15 net
- 6209-2RS2RS – rubber contact seals, both sides25 offers · from PLN 19.76 net
- 6209-ZZ – metal shield, one side21 offers · from PLN 20.36 net
- 6209-RSRS – rubber contact seal, one side8 offers · from PLN 33.42 net
- 6209-2RZ2RZ – rubber non-contact seals, both sides5 offers · from PLN 37.37 net
- 6209 KOpen · Tapered bore1 offer · from PLN 55.57 net
- 6209-RZRZ – rubber non-contact seal, one side1 offer · from PLN 149.31 net
How manufacturers designate 6209 K-2RS
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| SKF | 6209 K-2RS1 | 2RS – rubber contact seals, both sides |
| FAG | 6209-C-K-2HRS | 2RS – rubber contact seals, both sides |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6209 K-2RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6209 K-2RS
What are the dimensions of bearing 6209 K-2RS?
Bore 45 mm, outside diameter 85 mm, width 19 mm. Standardised dimensions – the same for every manufacturer.
Are 6209 K-2RS bearings from different brands interchangeable?
Yes. 6209 K-2RS1 SKF, 6209-C-K-2HRS FAG are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6209 K-2RS cost?
At Castomer from PLN 85.05 to PLN 97.74 net per piece depending on the manufacturer (SKF, FAG). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6209 K-2RS?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
