Deep groove ball bearing 6209-Z – 45×85×19 mm
21 offers · 8 manufacturers · net prices from PLN 20.36 · dispatch in 2 working days
6209-Z is a deep groove ball bearing with a 45 mm bore, 85 mm outside diameter and 19 mm width, with one metal shield (Z). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.
- bore d
- 45 mm
- outside D
- 85 mm
- width B
- 19 mm
- sealing
- Z
- mass
- 0.41 kg
- net price from
- PLN 20.36
Brands and prices 6209-Z
Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.
| Brand | Manufacturer designation | Clearance | Net price | Availability | |
|---|---|---|---|---|---|

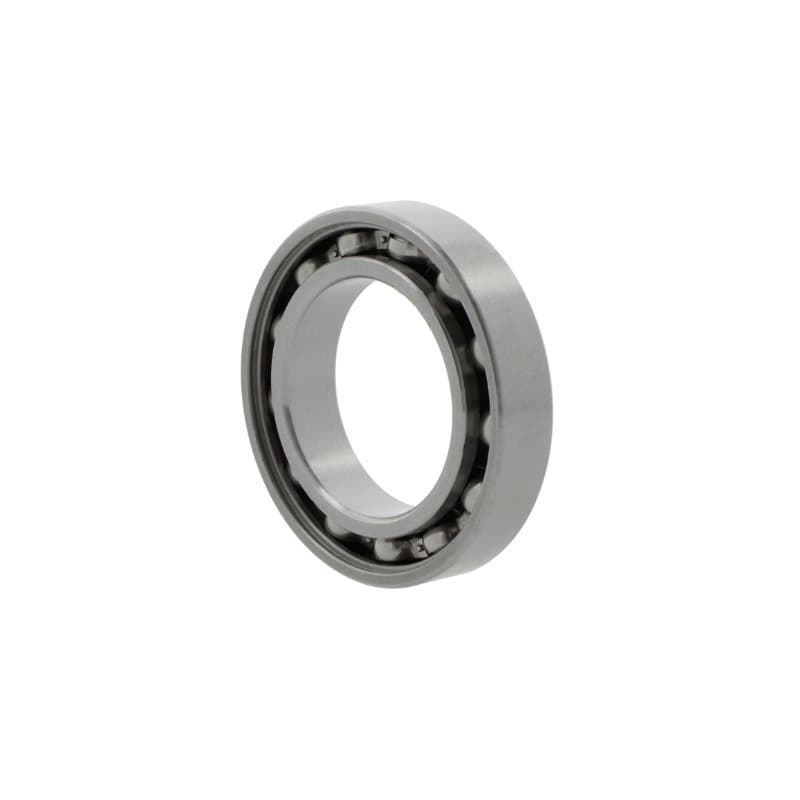

| NACHI | 6209-ZECMEC design, machined brass cage (SKF) | CN | PLN 20.36PLN 25.04 gross | supplier stockdispatch in 2 working days | |
| NACHI | 6209-ZEC3reinforced design, higher load rating | C3 | PLN 27.65PLN 34.01 gross | supplier stockdispatch in 2 working days | |
| FAG | 6209-C2Z | C2 | PLN 29.59PLN 36.40 gross | supplier stockdispatch in 2 working days | |
| FAG | 6209-C2ZC3 | C3 | PLN 29.59PLN 36.40 gross | supplier stockdispatch in 2 working days | |
| NKE | 6209-Z | CN | PLN 32.29PLN 39.72 gross | supplier stockdispatch in 2 working days | |
| NKE | 6209-ZC3 | C3 | PLN 32.29PLN 39.72 gross | supplier stockdispatch in 2 working days | |
| NSK | 6209-Z | CN | PLN 34.08PLN 41.92 gross | supplier stockdispatch in 2 working days | |
| NSK | 6209 ZC3 | C3 | PLN 34.08PLN 41.92 gross | supplier stockdispatch in 2 working days | |
| FAG | 6209-ZR | CN | PLN 37.97PLN 46.70 gross | supplier stockdispatch in 2 working days | |
| FAG | 6209-CZC3 | C3 | PLN 39.91PLN 49.09 gross | supplier stockdispatch in 2 working days | |
| KOYO | 6209 ZC3 | C3 | PLN 40.45PLN 49.75 gross | supplier stockdispatch in 2 working days | |
| NSK | 6209-ZC4 | C4 | PLN 40.61PLN 49.95 gross | supplier stockdispatch in 2 working days | |
| SKF | 6209-Z | CN | PLN 45.03PLN 55.39 gross | supplier stockdispatch in 2 working days | |
| FAG | 6209-C-Z | CN | PLN 45.03PLN 55.39 gross | supplier stockdispatch in 2 working days | |
| NTN | 6209-Z | CN | PLN 47.47PLN 58.39 gross | supplier stockdispatch in 2 working days | |
| SKF | 6209-Z/C3 | C3 | PLN 50.65PLN 62.30 gross | supplier stockdispatch in 2 working days | |
| SKF | 6209-ZC4 | C4 | PLN 60.37PLN 74.26 gross | supplier stockdispatch in 2 working days | |
| SNR | 6209 FT150ZZ | CN | PLN 92.45PLN 113.71 gross | supplier stockdispatch in 2 working days | |
| SNR | 6209 HT200ZZ | CN | PLN 186.14PLN 228.95 gross | supplier stockdispatch in 2 working days |
Can't see your brand? Ask for an offer – we reply within 24 h.
Other versions of 6209
The same size in another design – open, shielded, tapered bore.
- 6209Open41 offers · from PLN 14.15 net
- 6209-2Z2Z – metal shields, both sides29 offers · from PLN 14.15 net
- 6209-2RS2RS – rubber contact seals, both sides25 offers · from PLN 19.76 net
- 6209-RSRS – rubber contact seal, one side8 offers · from PLN 33.42 net
- 6209-2RZ2RZ – rubber non-contact seals, both sides5 offers · from PLN 37.37 net
- 6209 K-2RS2RS – rubber contact seals, both sides · Tapered bore2 offers · from PLN 85.05 net
- 6209 KOpen · Tapered bore1 offer · from PLN 55.57 net
- 6209-RZRZ – rubber non-contact seal, one side1 offer · from PLN 149.31 net
How manufacturers designate 6209-Z
Each brand uses its own seal and design codes. The designations below describe the same bearing.
| Manufacturer | Designation | Sealing / design |
|---|---|---|
| FAG | 6209-C2Z | Z – metal shield, one side |
| NSK | 6209-Z | Z – metal shield, one side |
| SKF | 6209-Z | Z – metal shield, one side |
| NACHI | 6209-ZECM | Z – metal shield, one side |
| NKE | 6209-Z | Z – metal shield, one side |
| SNR | 6209 FT150ZZ | Z – metal shield, one side |
| KOYO | 6209 ZC3 | Z – metal shield, one side |
| NTN | 6209-Z | Z – metal shield, one side |
2RS, 2Z or C3 – which to choose?
2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.
Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.
The dimensions of 6209-Z are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.
Questions about 6209-Z
What are the dimensions of bearing 6209-Z?
Bore 45 mm, outside diameter 85 mm, width 19 mm. Standardised dimensions – the same for every manufacturer.
Are 6209-Z bearings from different brands interchangeable?
Yes. 6209-C2Z FAG, 6209-Z NSK, 6209-Z SKF, 6209-ZECM NACHI, 6209-Z NKE are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.
How much does bearing 6209-Z cost?
At Castomer from PLN 20.36 to PLN 186.14 net per piece depending on the manufacturer (FAG, NSK, SKF, NACHI, NKE, SNR). Prices are updated from supplier warehouses; larger quantities get an individual offer.
What is the delivery time for 6209-Z?
Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
