Deep groove ball bearing 6209-RS – 45×85×19 mm

8 offers · 3 manufacturers · net prices from PLN 33.42 · dispatch in 2 working days

6209-RS is a deep groove ball bearing with a 45 mm bore, 85 mm outside diameter and 19 mm width, with one rubber contact seal (RS). The dimensions are standardised, so items from different manufacturers with the same clearance and sealing are interchangeable 1:1. All brands with current net prices are listed below.

bore d: 45 mm
outside D: 85 mm
width B: 19 mm
sealing: RS
mass: 0.41 kg
net price from: PLN 33.42

Dimension drawing 6209-RS – one for all brands (ISO dimensions)

Main dimensions
d – bore diameter	45 mm
D – outside diameter	85 mm
B – width	19 mm
dynamic load rating C	35.1 kN (per SKF catalogue)
static load rating C₀	21.6 kN (per SKF catalogue)
mass	0.41 kg

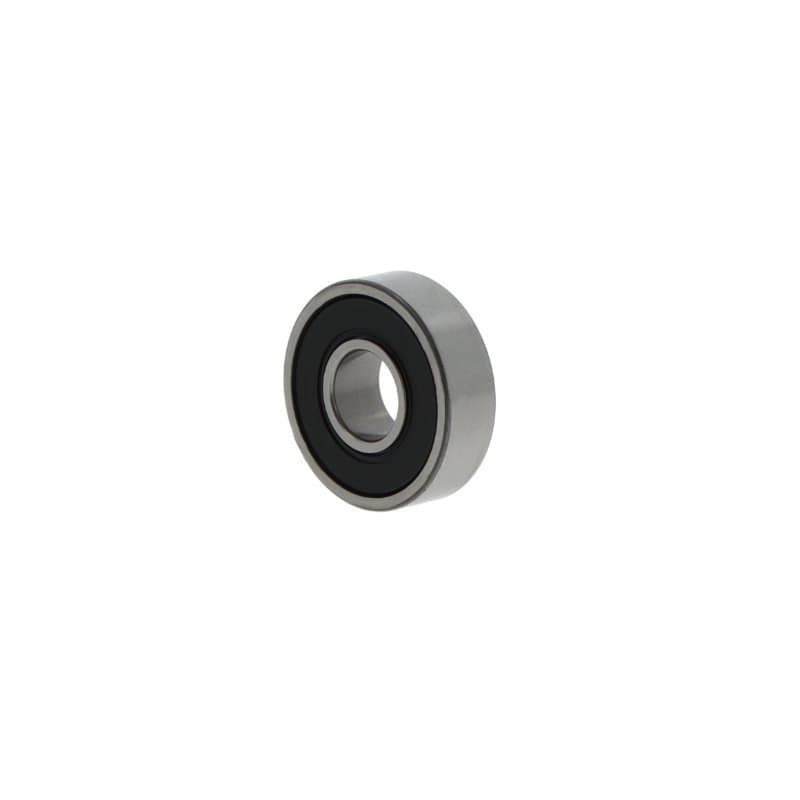

Pictured: FAG 6209-C2HRSC3. Every brand has its own product page with photo and full description.

Brands and prices 6209-RS

Net price per piece, gross incl. 23% VAT. Selected items go into one enquiry – we reply within 24 h, with better prices for larger quantities.

Brand	Manufacturer designation	Clearance	Net price	Availability
FAG	6209-C2HRSC3	C3	PLN 33.42PLN 41.11 gross	supplier stockdispatch in 2 working days
FAG	6209-C2HRS	C2	PLN 33.42PLN 41.11 gross	supplier stockdispatch in 2 working days
NKE	6209-RSR	CN	PLN 36.50PLN 44.90 gross	supplier stockdispatch in 2 working days
NSK	6209-DU	CN	PLN 38.45PLN 47.29 gross	supplier stockdispatch in 2 working days
FAG	6209-RSRC3	C3	PLN 43.58PLN 53.60 gross	supplier stockdispatch in 2 working days
FAG	6209-CHRS	CN	PLN 45.03PLN 55.39 gross	supplier stockdispatch in 2 working days
FAG	6209-CHRSC3	C3	PLN 45.03PLN 55.39 gross	supplier stockdispatch in 2 working days
NKE	6209-RSRC3	C3	PLN 46.72PLN 57.47 gross	supplier stockdispatch in 2 working days

Can't see your brand? Ask for an offer – we reply within 24 h.

Other versions of 6209

The same size in another design – open, shielded, tapered bore.

How manufacturers designate 6209-RS

Each brand uses its own seal and design codes. The designations below describe the same bearing.

Manufacturer	Designation	Sealing / design
FAG	6209-C2HRSC3	RS – rubber contact seal, one side
NKE	6209-RSR	RS – rubber contact seal, one side
NSK	6209-DU	RS – rubber contact seal, one side

2RS, 2Z or C3 – which to choose?

2RS (two rubber seals) keeps dust and moisture out but limits speed. 2Z (metal shields) does not touch the ring, so it runs faster and cooler but protects less. 2RZ is the compromise – a non-contact seal.

Choose C3 clearance when the bearing runs hot (electric motors, fans) or with a tight shaft fit. Normal clearance CN is enough for ordinary applications.

The dimensions of 6209-RS are identical for every manufacturer, so the items in the table are interchangeable – just match the clearance and sealing.

Questions about 6209-RS

What are the dimensions of bearing 6209-RS?

Bore 45 mm, outside diameter 85 mm, width 19 mm. Standardised dimensions – the same for every manufacturer.

Are 6209-RS bearings from different brands interchangeable?

Yes. 6209-C2HRSC3 FAG, 6209-RSR NKE, 6209-DU NSK are the same bearing under different manufacturers' designations. Match the clearance (e.g. C3) and the sealing.

How much does bearing 6209-RS cost?

At Castomer from PLN 33.42 to PLN 46.72 net per piece depending on the manufacturer (FAG, NKE, NSK). Prices are updated from supplier warehouses; larger quantities get an individual offer.

What is the delivery time for 6209-RS?

Dispatch in 2 working days from supplier warehouses in the EU. Availability is confirmed in the reply to your enquiry.
